Method and apparatus for providing welding type power
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Aug 27, 2014
filing date -
Jul 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

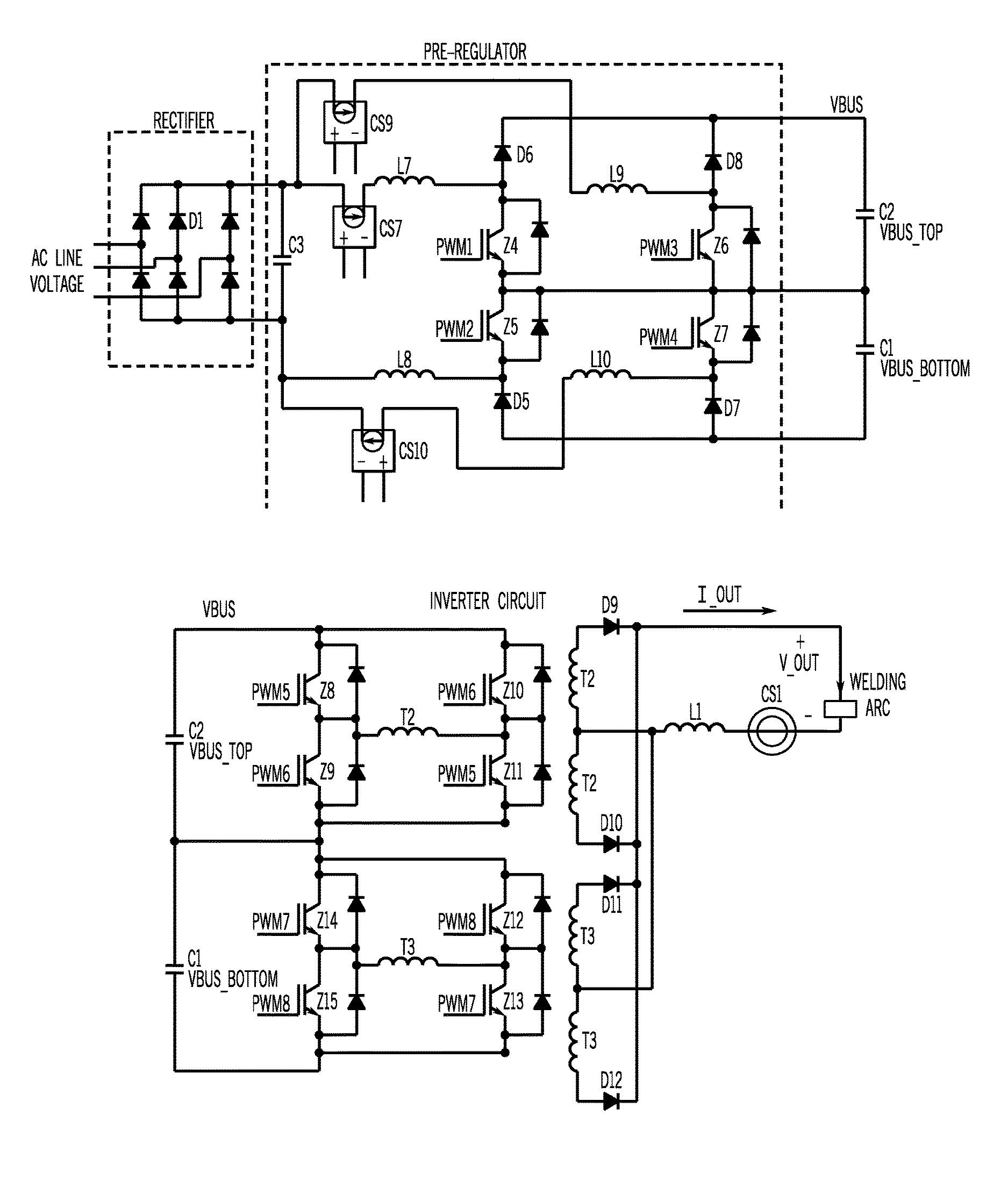

A welding-type power supply includes a controller, a preregulator, a preregulator bus, and an output converter. The controller has a preregulator control output and an output converter control output. The preregulator receives a range of inputs voltages as a power input, and receives the preregulator control output as a control input, and provides a preregulator power output signal. The preregulator includes a plurality of stacked boost circuits. The preregulator bus receives the preregulator output signal. The output converter receives the preregulator bus as a power signal and receives the output converter control output as a control input. The output converter provides a welding type power output, and includes at least one stacked inverter circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02M Class
- 2655 Applications Filed
- 2317 Patents Issued To-Date
- 87.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- H02M Class
- 19.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
