Hybrid article, method for forming hybrid article and method for closing aperture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 11, 2015
filing date -
Dec 11, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

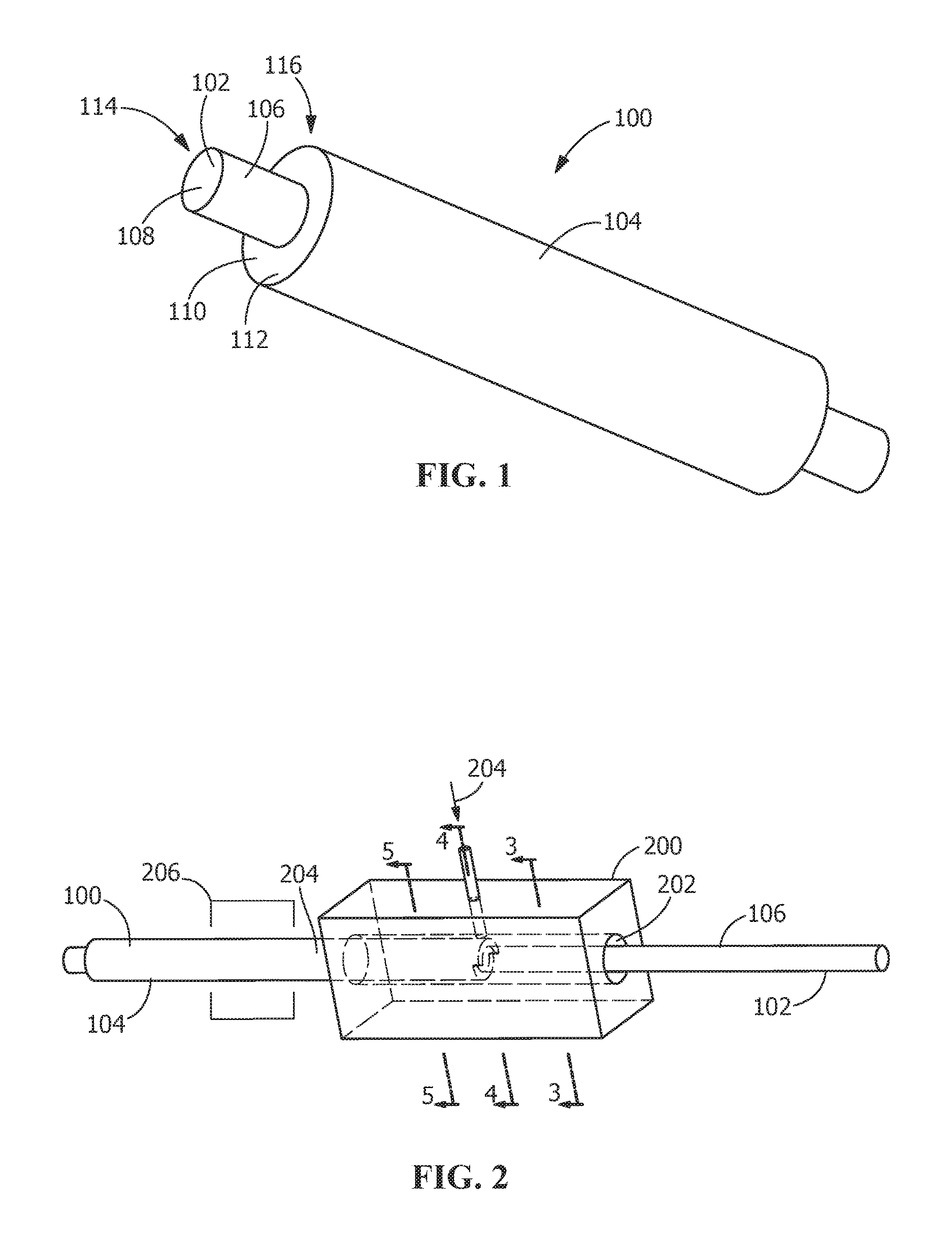

A hybrid article is disclosed including a coating disposed on and circumscribing the lateral surface of a core having a core material. The coating includes about 35% to about 95% of a first metallic material having a first melting point, and about 5% to about 65% of a second metallic material having a second melting point lower than the first melting point. A method for forming the hybrid article is disclosed including disposing the core in a die, forming a gap between the lateral surface and the die, introducing a slurry having the metallic materials into the gap, and sintering the slurry, forming the coating. A method for closing an aperture of an article is disclosed including inserting the hybrid article into the aperture. Closing the aperture includes brazing the hybrid article to the article, welding the aperture with the hybrid article serving as weld filler, or a combination thereof.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- B23K Class
- 2354 Applications Filed
- 1765 Patents Issued To-Date
- 74.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23K Class
- 37.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
