Measurement and control systems and methods for electrosurgical procedures
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 11, 2007
filing date -
Jul 11, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

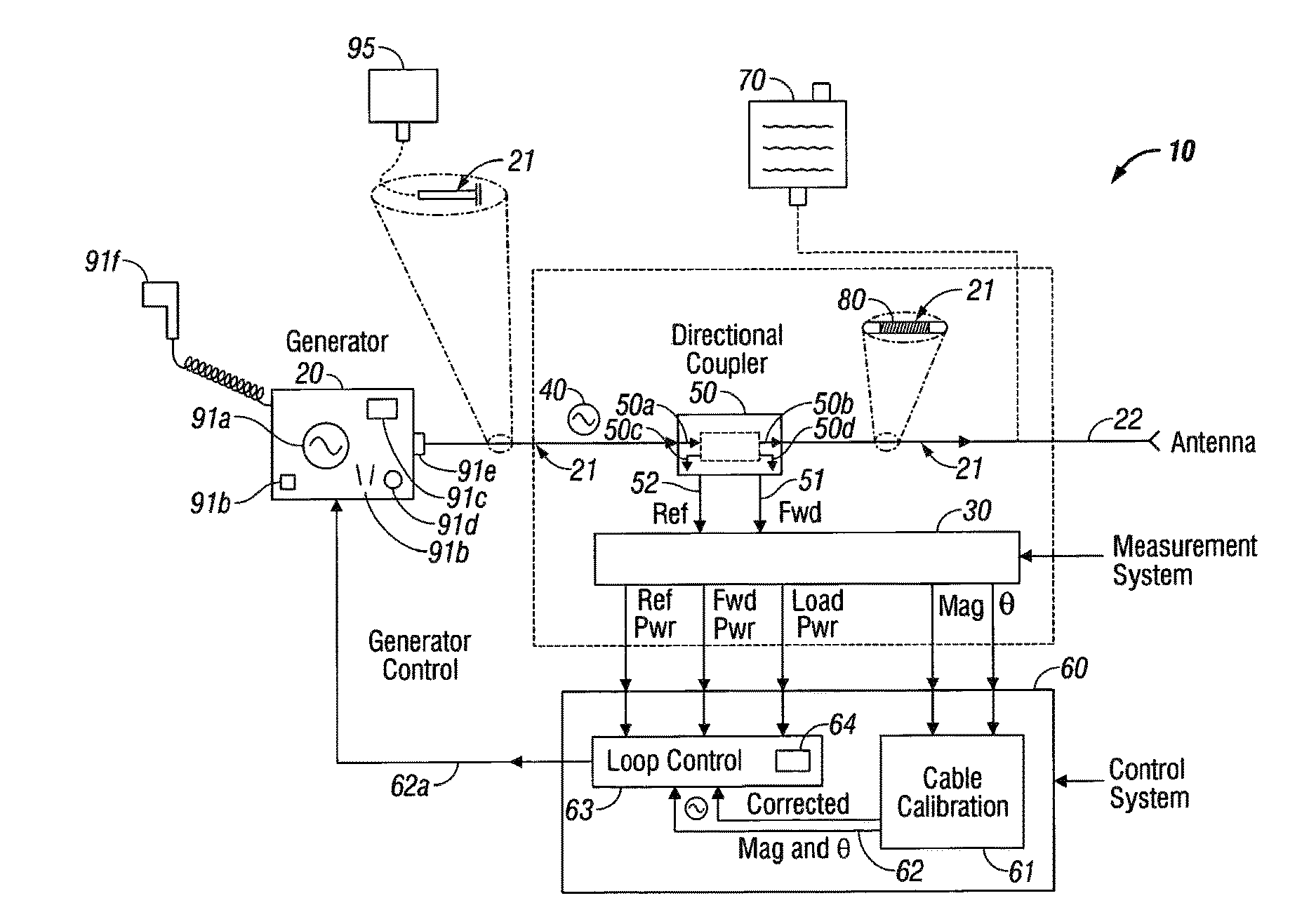

An energy delivery system for use in performing a medical procedure is provided. The medical procedure can employ an energy source, the energy source can be connected to an energy delivering device via a transmission line. The energy delivery system can include a measurement system, the measurement system can be configured to sample an output signal generated by the energy source. The energy delivery system includes a control system, which includes a calibration unit. The calibration unit can be configured to generate a calibration signal. The calibration signal can have a magnitude and phase, wherein the magnitude and phase is representative of the output signal and the transmission line loss information. The energy delivery system can also include a control unit, the control unit being configured to receive the calibration signal and adjust the energy source as needed.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
