Ultrasound probe
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 23, 2013
filing date -
Feb 7, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

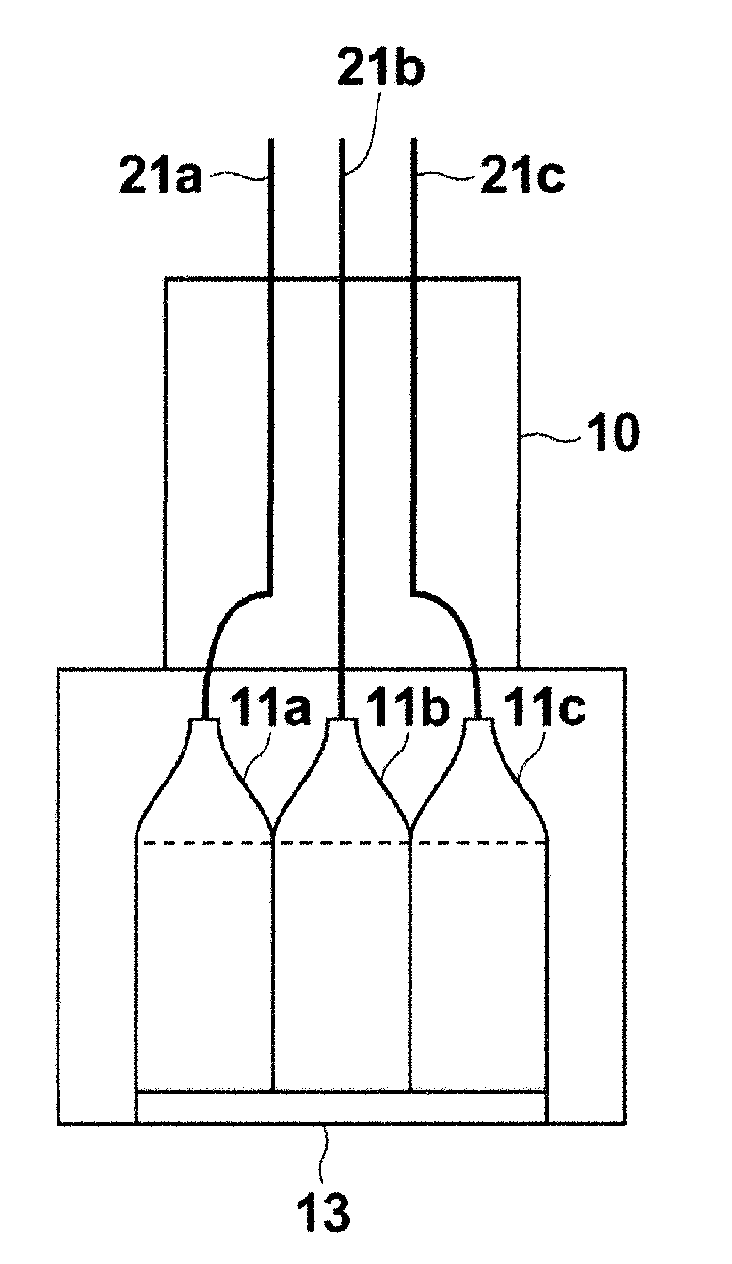

An optical fiber guides light output from a light source to an ultrasound probe. The ultrasound probe includes a light guiding section that guides the light from a light input end, which is optically coupled with the optical fiber to a light output end provided in the vicinity of ultrasonic transducers. The light guiding section has a first light guiding portion that includes the light input end, and a second light guiding portion that includes the light output end. The first light guiding portion is formed by glass, and magnifies input light. The second light guiding portion is formed by resin, and emits the light toward a subject from the light output end.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01N Class
- 40.30 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
