X-ray apparatus and method of capturing X-ray image
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Oct 8, 2015
app pub date -
Jun 17, 2015
filing date -
Oct 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

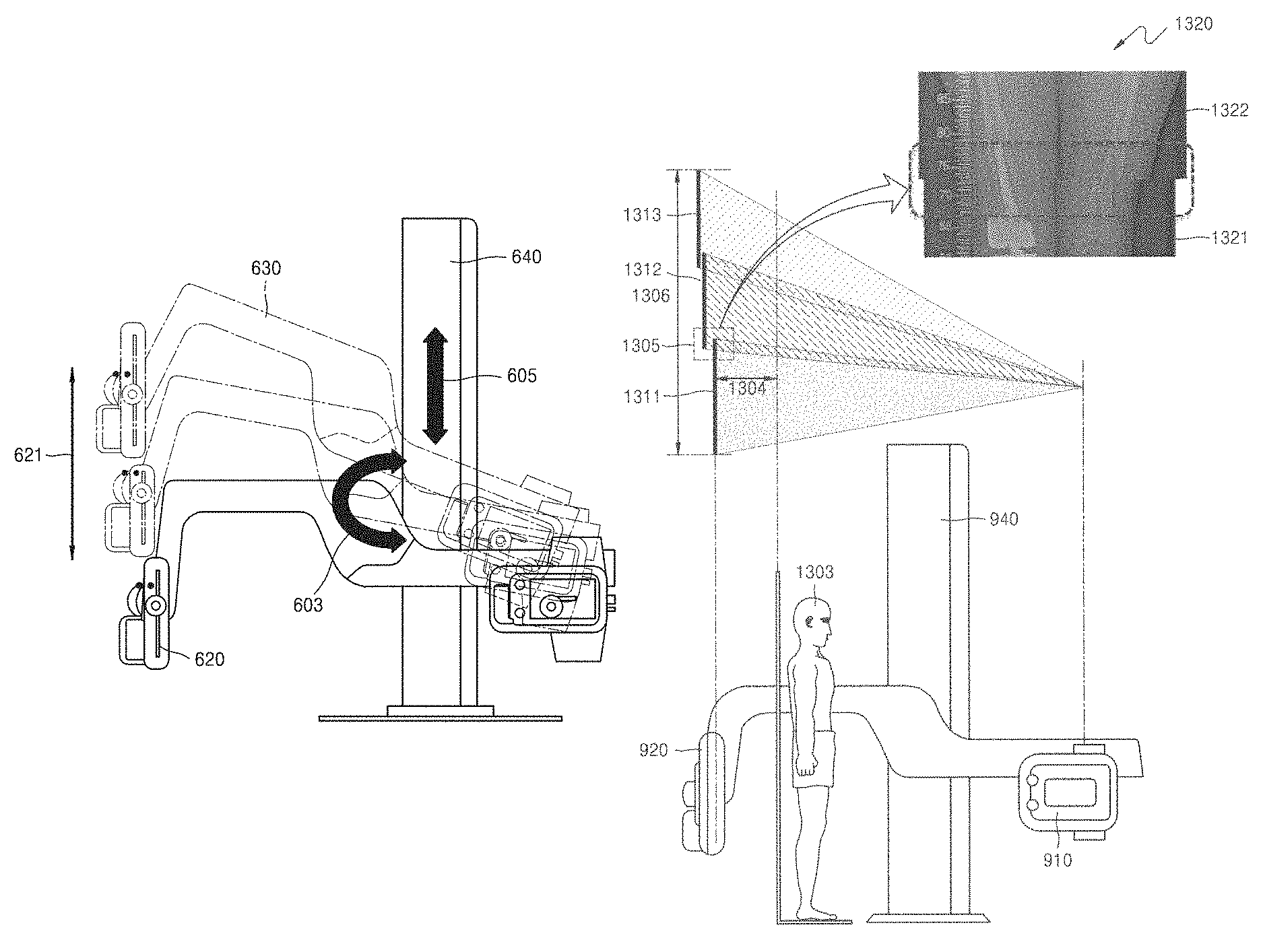

An X-ray apparatus includes: a source configured to emit X-rays to an object; a detector configured to detect the X-rays that have penetrated the object; an arm configured to connect the source to the detector and move centering on a stand fixed to a bottom; a controller configured to control a movement of the arm so that the controller changes a direction of the X-rays, which are radiated to the object, and the arm rotates on the stand to move the detector in a first direction, to obtain images for a plurality of parts of the object; and an image processor configured to obtain the images for the plurality of parts of the object based on the X-rays detected by the detector.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61B Class
- 16562 Applications Filed
- 12933 Patents Issued To-Date
- 78.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
