Radiation blocking unit, radiographic imaging apparatus, and radiographic imaging method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jan 31, 2014
filing date -
Feb 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

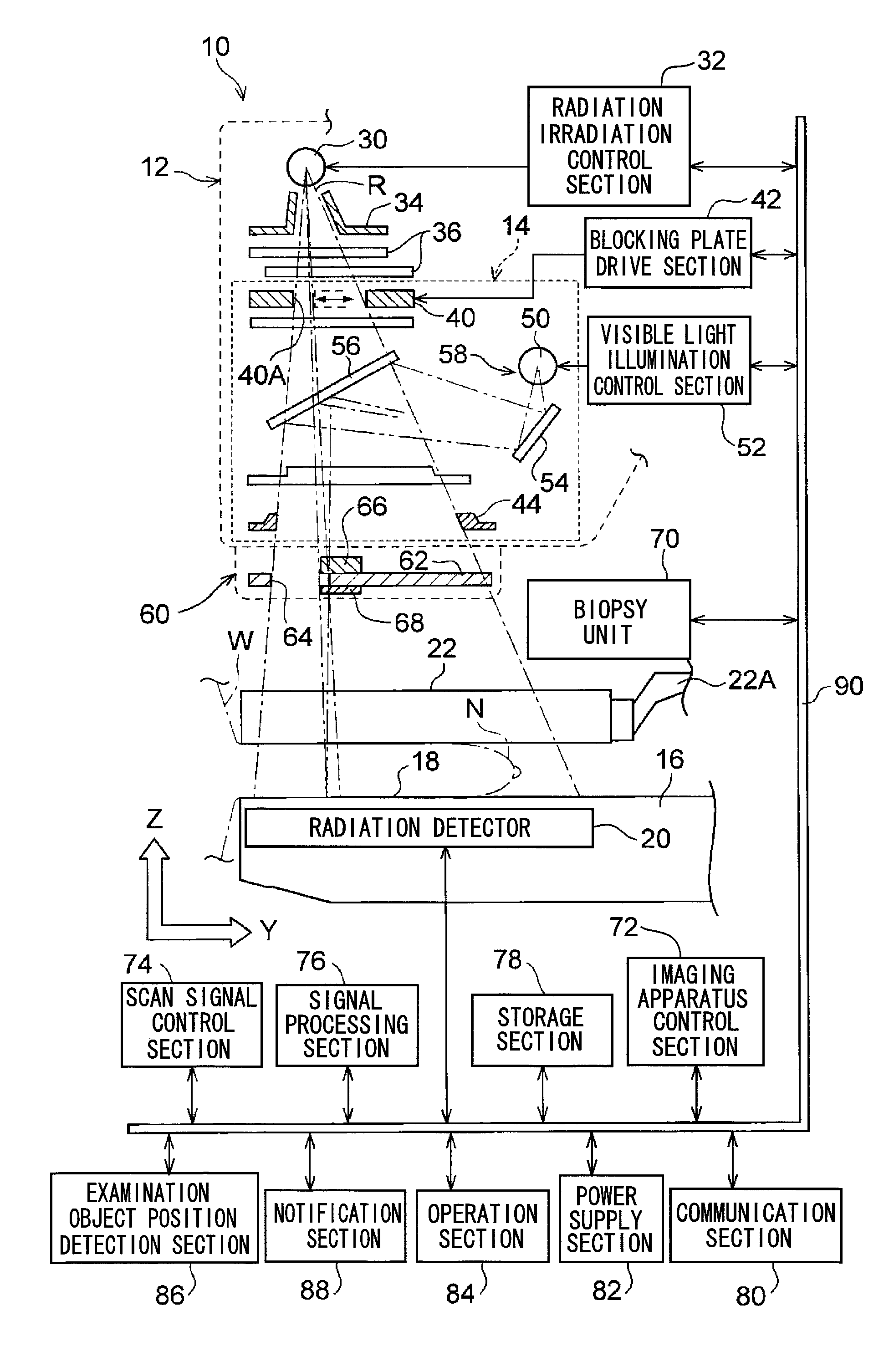

The present invention provides a radiation blocking unit including: an attachment member that is attachable between sources and an object table surface to which radiation from a radiation source and visible light from a visible light source are emitted, the sources including the radiation source and the visible light source; a radiation blocking portion, disposed on the attachment member, that transmits the illuminated visible light to an overlapping incidence region on the object table surface in which an incidence region of the radiation and an incidence region of the visible light overlap, and that blocks the irradiated radiation outside the overlapping incidence region; and a visible light blocking portion, disposed on the attachment member, that transmits the irradiated radiation to the overlapping incidence region, and blocks the illuminated visible light outside the overlapping incidence region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A61B Class
- 14296 Applications Filed
- 12053 Patents Issued To-Date
- 84.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
