Frequency shift keying modulation and demodulation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Mar 19, 2011
filing date -
Mar 18, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

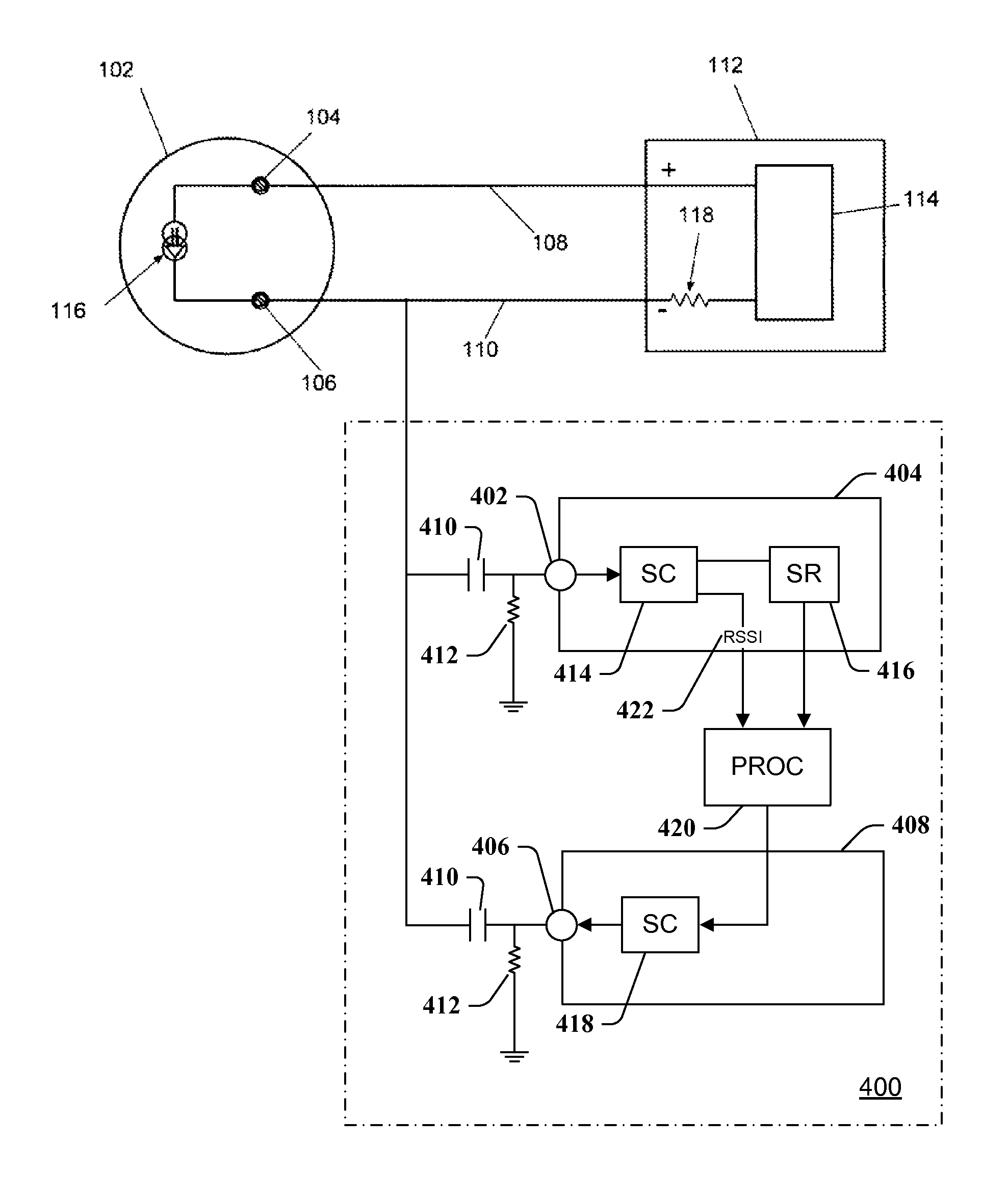

A communications adaptor comprises a receiver circuit, which can comprise a signal input configured to receive a frequency shift keyed (FSK) signal; a delay circuit in communication with the signal input and including a delayed signal output; a multiplier circuit in communication with the signal input and the delayed signal output, and the multiplier circuit can be configured to produce a serial bit steam from at least the signal input and the delayed signal output, the serial bit stream corresponds to one or more bits encoded with frequency shift keying in the FSK signal; and a signal output configured to output the serial bit stream. The communications adaptor also can comprise a transmitter circuit and a processor in communication with the receiver circuit and the transmitter circuit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04L Class
- 17.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
