Power detection and transmission circuit coupling analog input signal on primary side to secondary side for power information calculation and related power supply apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Mar 27, 2017
filing date -
Mar 31, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

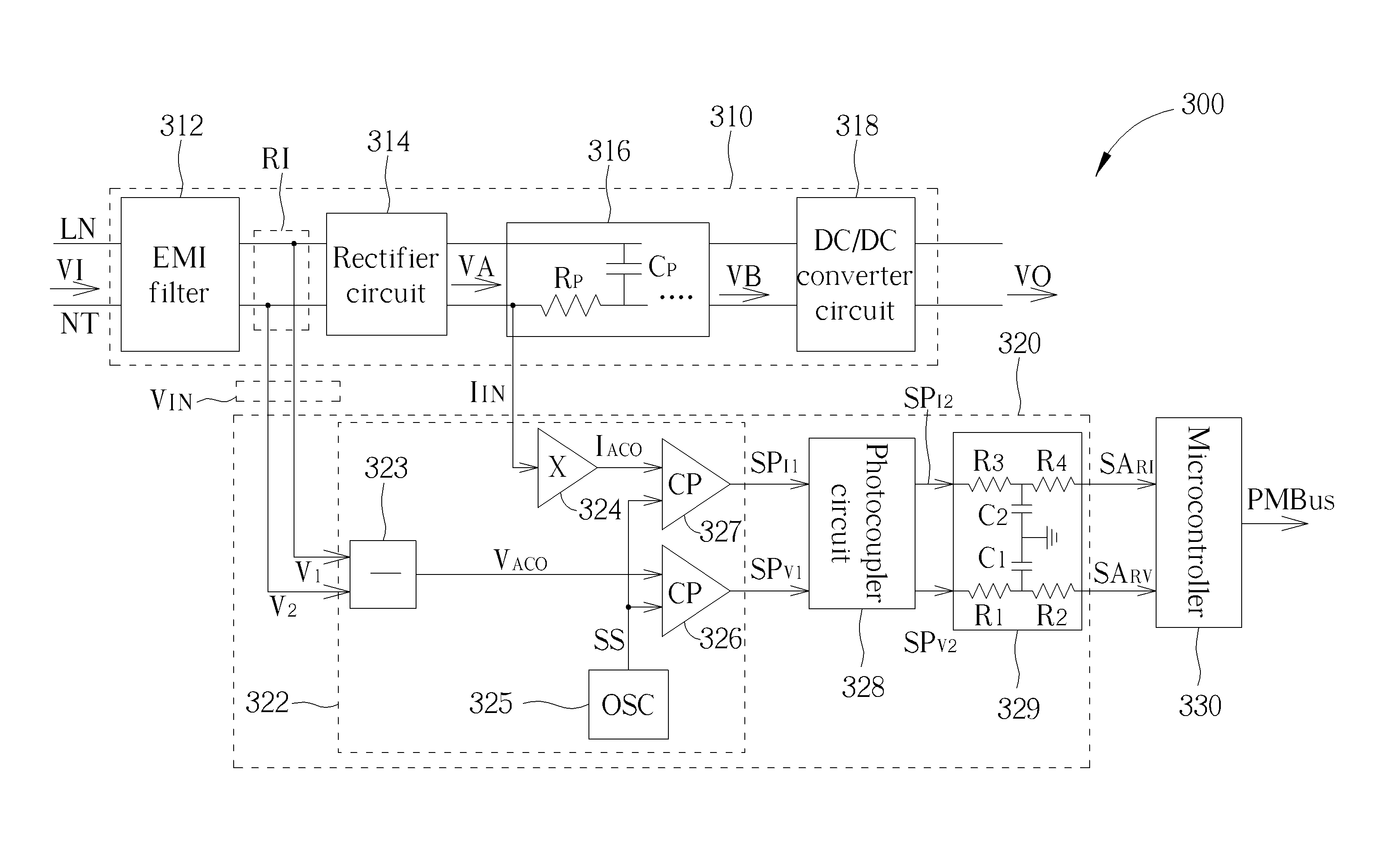

A power detection and transmission circuit is provided. The power detection and transmission circuit includes a first conversion circuit, a second conversion circuit and a signal coupling circuit. The first conversion circuit is electrically connected to a power supply module to receive an analog input signal, and is arranged for converting the analog input signal to a first pulse width modulation (PWM) signal. The second conversion circuit is arranged for converting a second PWM signal to an analog regenerated signal, and transmitting the analog regenerated signal to a microcontroller, wherein the microcontroller calculates power information of the power supply module according to the analog regenerated signal. The signal coupling circuit is coupled between the first conversion circuit and the second conversion circuit, and is arranged for coupling the first PWM signal to the second conversion circuit and accordingly generating the second PWM signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H02M Class
- 3298 Applications Filed
- 2665 Patents Issued To-Date
- 80.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
