Resistorless precharging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Nov 7, 2014
filing date -
Nov 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

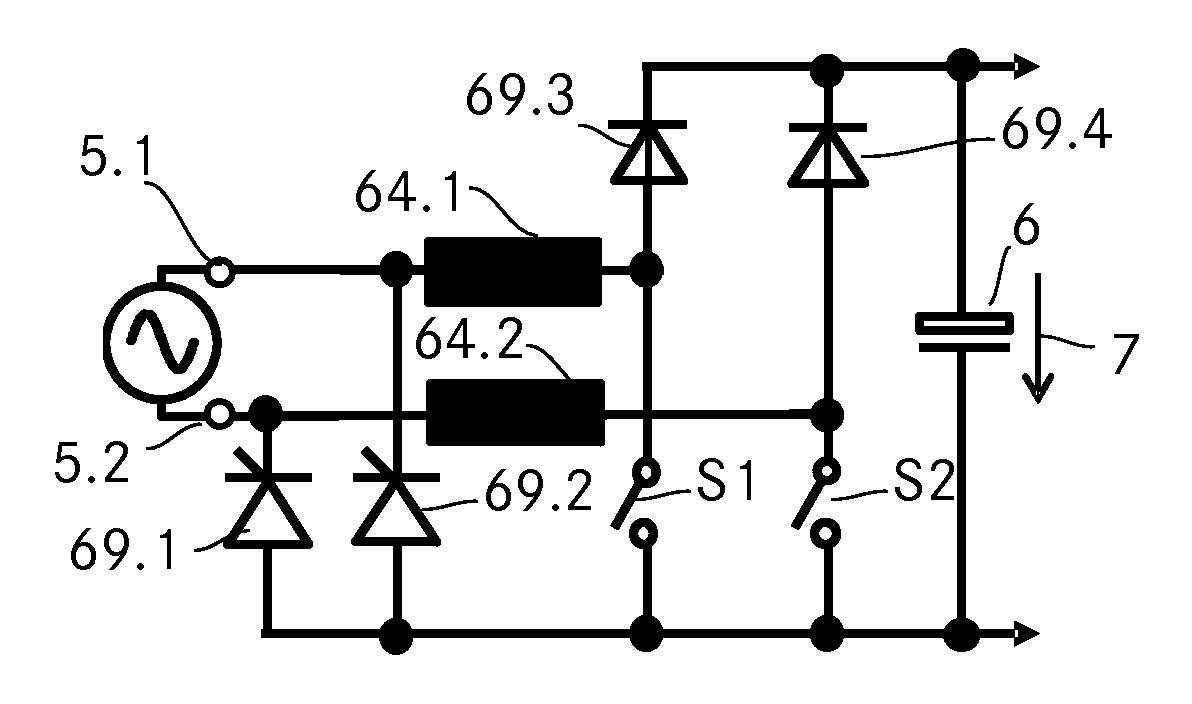

A boost PFC converter includes a rectifier, a converter and an output stage comprising an output capacitor where the DC output voltage is provided across the output capacitor. The rectifier includes four rectifying elements connected in a full bridge configuration where the upper two of these four rectifying elements are thyristors and where the lower two are diodes. In that the thyristors are controlled such as to be open for only a part of each half period of the input voltage, the amount of current per half period that is passed to the output capacitor is controllable and can be made very small. Accordingly, the charge current for precharging the output capacitor can be controllably limited such that a bulky precharge resistor is not required anymore to avoid high inrush currents.
