End plate for an electric machine, electric machine and method for assembling an electric machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
May 28, 2013
filing date -
May 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

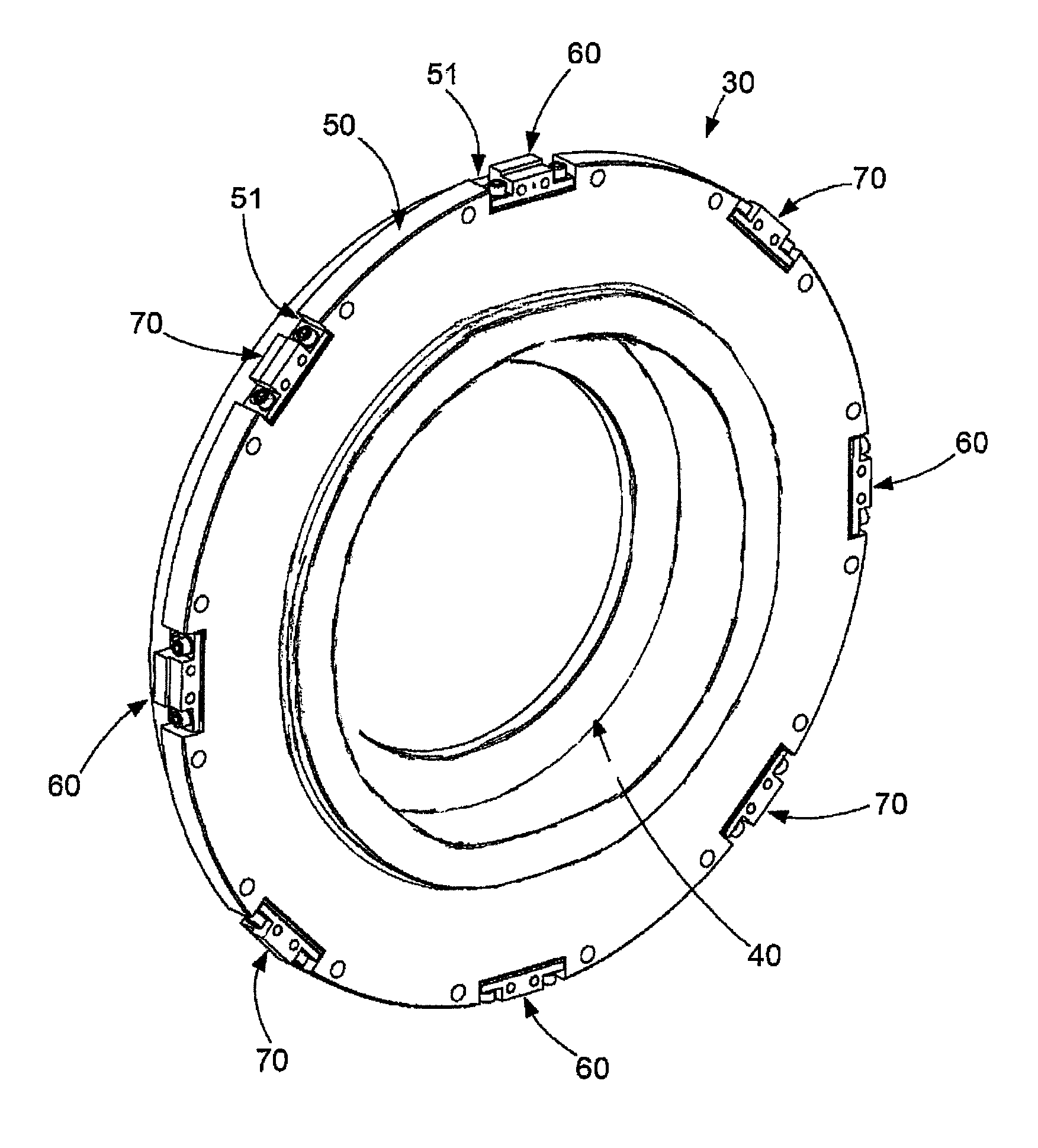

An end plate for an electric machine includes: a bearing receptacle in which a magnetic bearing which is configured for rotatably mounting a rotor of the electric machine can be accommodated; and a radially outwardly pointing circumferential contour on which a number of at least three supporting elements are provided, which supporting elements each protrude radially beyond the circumferential contour by a determined protruding amount, with the result that the supporting elements define a discontinuous external circumferential contour of the end plate. The respective protruding amounts of the support elements are dimensioned such that the end plate can be fitted in by making a center of the magnetic bearing correspond to at least one of a geometric longitudinal axis of the electric machine and a magnetic longitudinal axis of the electric machine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H02K Class
- 2008 Applications Filed
- 1782 Patents Issued To-Date
- 88.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
