Single-event burnout (SEB) hardened power schottky diodes, and methods of making and using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
May 6, 2016
filing date -
May 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

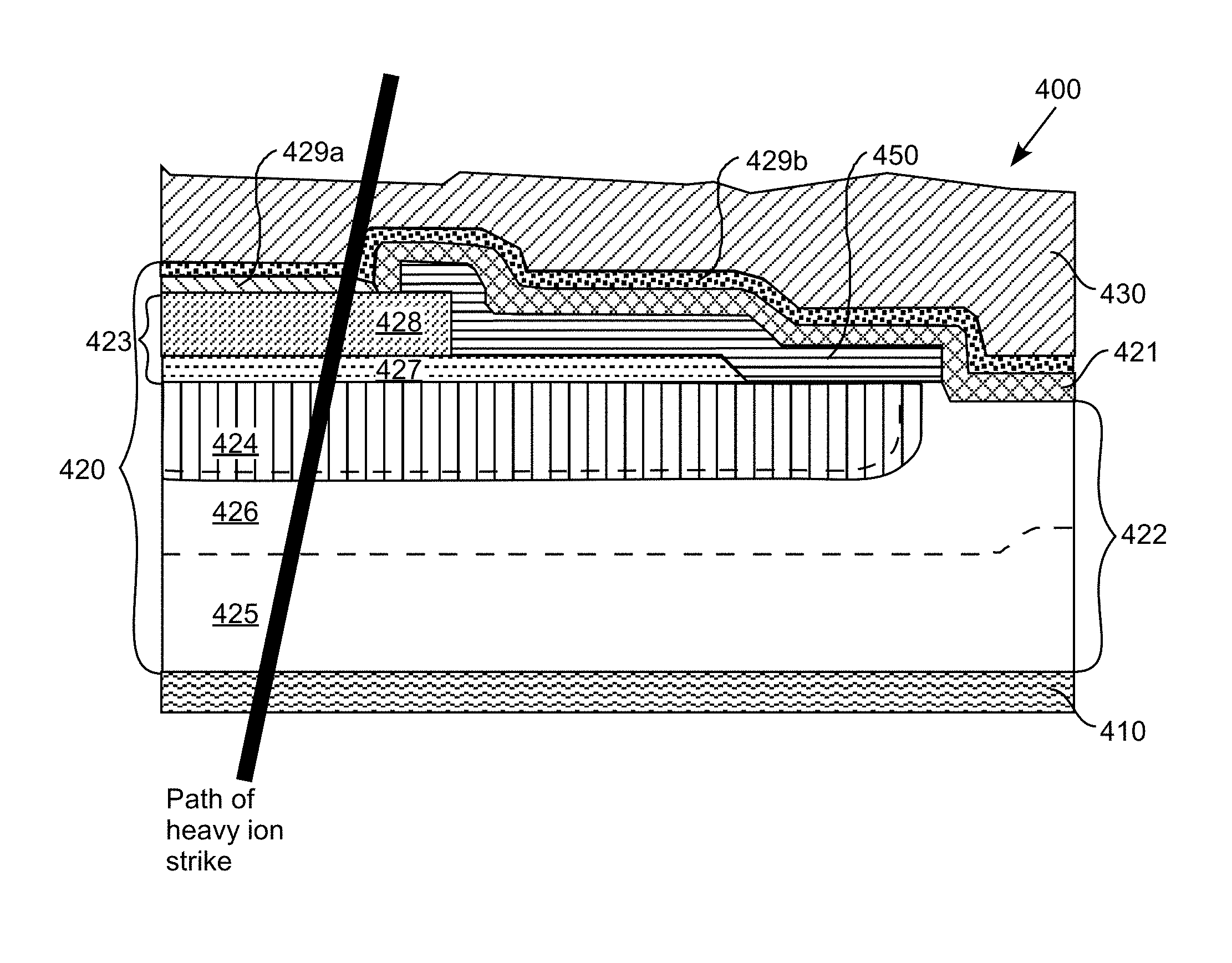

Under one aspect, a power Schottky diode includes a cathode; a semiconductor disposed over the cathode, the semiconductor including at least a first region and a second region, the second region defining a guard ring; an anode disposed over the first region and at least a portion of the guard ring, the anode including a metal, a junction between the anode and the first region defining a Schottky barrier; and an oxide disposed over the guard ring. Additionally, the power Schottky diode can include a resistive material disposed over at least a portion of the guard ring and at least a portion of the oxide. The resistive material can inhibit a flow of holes from the guard ring to the anode following a heavy ion strike to the guard ring. The anode further can be disposed over at least a portion of, or the entirety of, the resistive material.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03K Class
- 21.67 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
