Light emitting apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Mar 8, 2006
filing date -
Mar 14, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

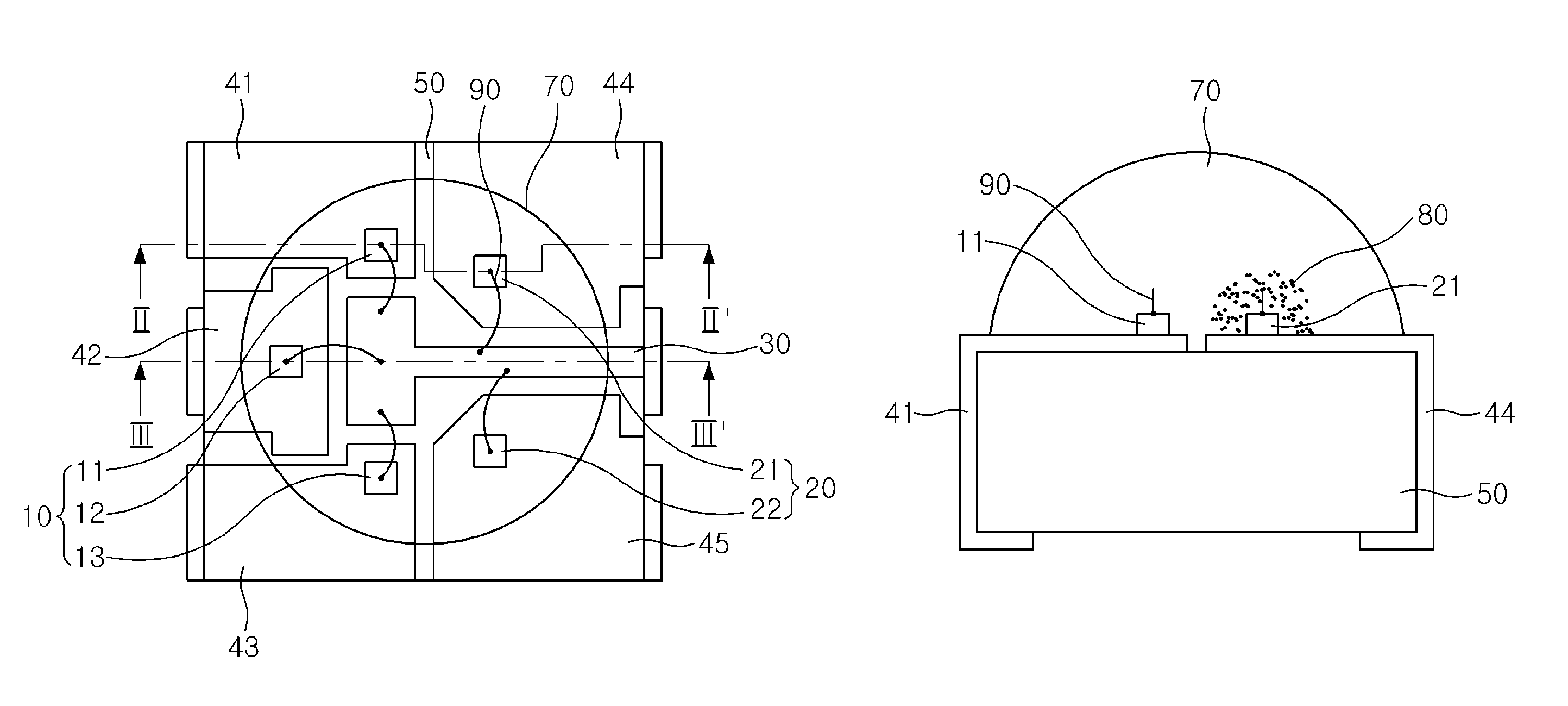

The present invention provides a light emitting apparatus comprising a three-color light emitting device unit including at least three light emitting diode (LED) chips for respectively emitting red, green and blue light; a white light emitting device unit including at least one blue LED chip with a fluorescent substance formed thereon; and a substrate provided with a first electrode connected in common to ends of the LED chips and second electrodes formed to correspond respectively to the LED chips. Further, the present invention provides a light emitting apparatus comprising a plurality of LED chips; a substrate provided with a first electrode connected in common to ends of the plurality of LED chips and second electrodes formed to correspond respectively to the plurality of LED chips; an upper package formed on the substrate to surround the plurality of LED chips and to have a partition crossing the first electrode at the center of the upper package; and a molding member that encapsulates the plurality of LED chips and is divided by the partition of the upper package.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2006 Application Filing Year
- H01L Class
- 15239 Applications Filed
- 10454 Patents Issued To-Date
- 68.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
