Perforation of films for separation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Grant Date -
Mar 17, 2016
app pub date -
Mar 20, 2015
filing date -
Sep 11, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

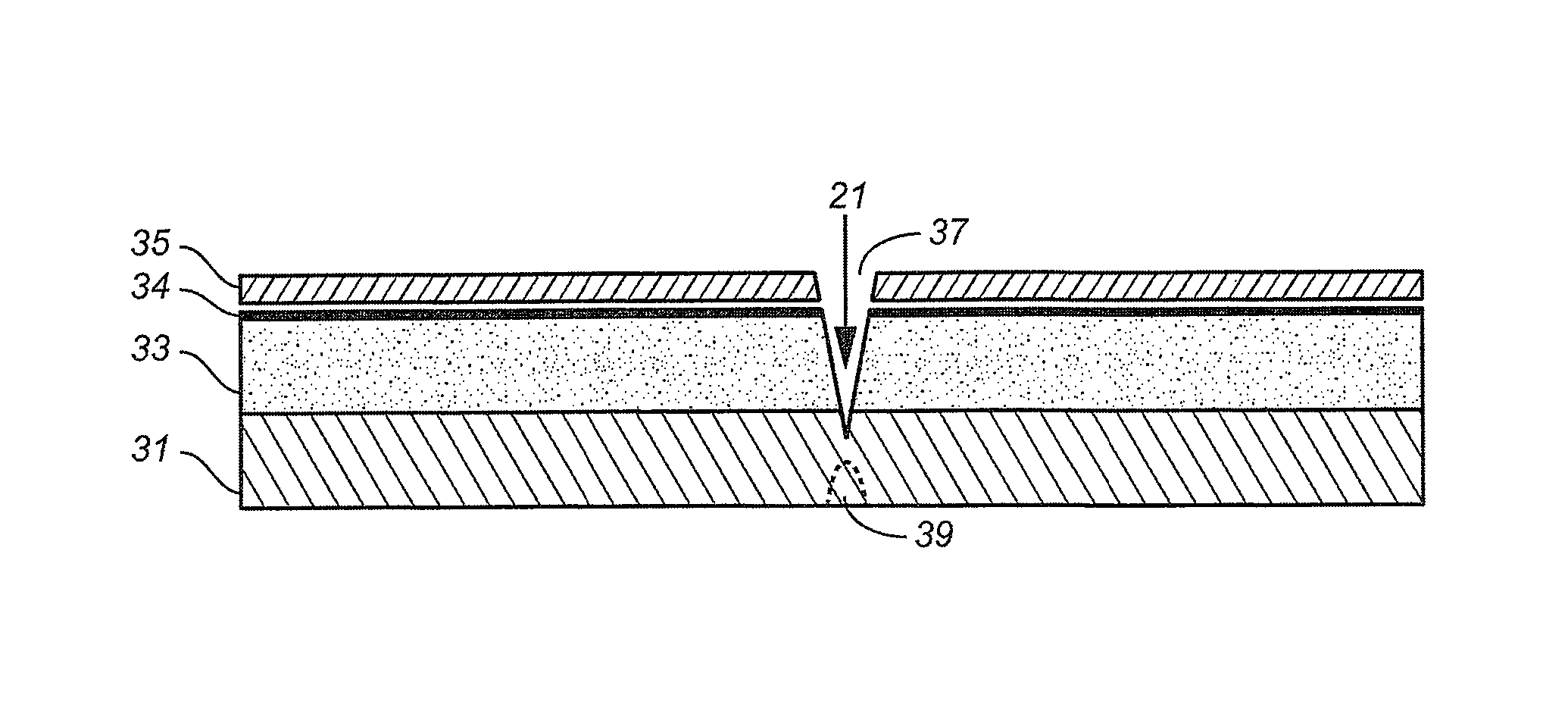

A method for separation of semiconductor device cell units from fabricated large-area cell units, together with a corresponding tile unit structure, are provided in which the tile unit is cut along cell unit boundaries while leaving intact a set of specified tab sections distributed along the cell unit boundaries. The tile unit may be a multi-layer composite of a semiconductor layer with a conductive metallic base supported upon a polymer layer and adhered thereto by an adhesive film, wherein tab sections are cut completely through the semiconductor layer and its metallic base from above and may also be cut partially through the polymer layer from below, leaving at least a portion of the polymer layer in place at tab sections. Tile units can be handled such that component cell units are held together by the tab sections, until a physical final separation of selected cell units.
