Security document and method of manufacturing security document
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Nov 29, 2011
filing date -
Dec 2, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

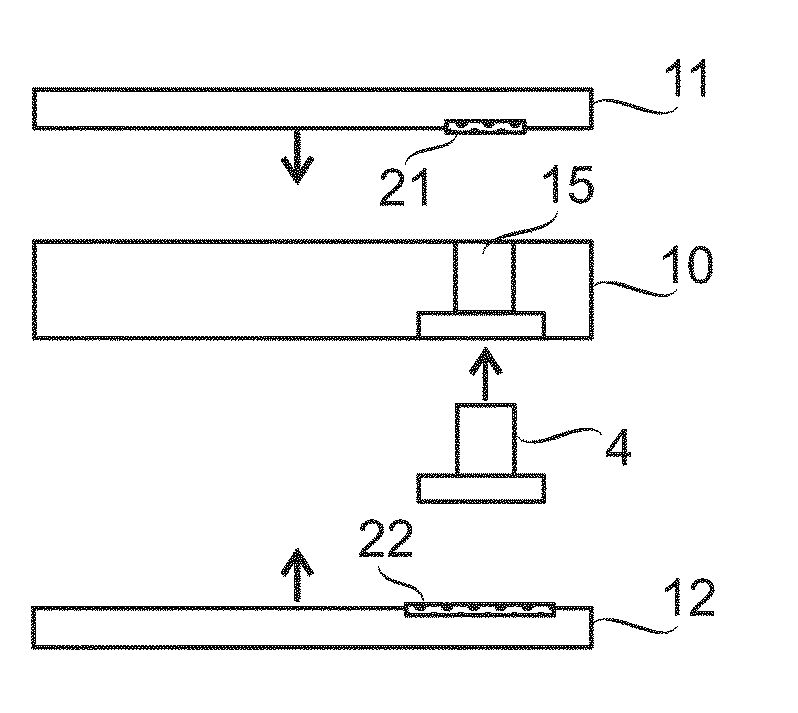

A security document (1, 1′), comprising: a base layer (10, 10′) having a through hole (15, 15′) extending from a first side of the base layer (10, 10′) to a second side of the base layer (10, 10′); a first cover layer (11, 11′) attached on the first side of the base layer (10, 10′); a second cover layer (12, 12′) attached on the second side of the base layer (10, 10′); and an electronic module (4, 4′) arranged in said through hole (15, 15′). The security document (1, 1′) further comprises a first patch (21, 21′) attached to the security document (1, 1′) by hot stamping and located between the base layer (10, 10′) and the first cover layer (11, 11′), the first patch (21, 21′) surrounding the through hole (15, 15′) and covering a perimeter area around the through hole (15, 15′) on the first side of the base layer (10, 10′), thereby preventing attachment of the base layer (10, 10′) to the first cover layer (11, 11′) in the region of the perimeter area.
