Estimating deformation of a patterning device and/or a change in its position
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Mar 5, 2015
filing date -
Apr 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

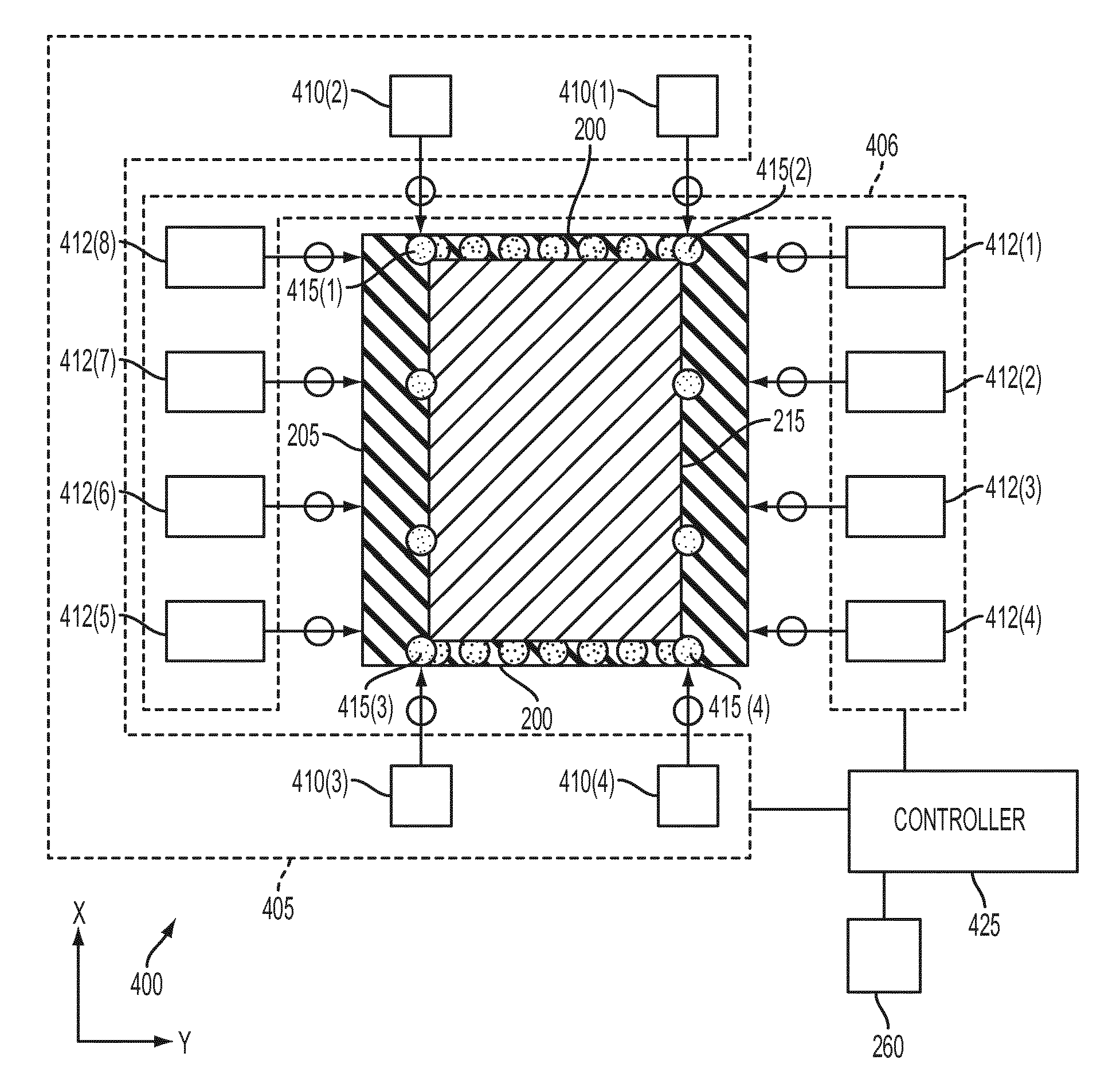

A system and method are provided for determining deformation of a patterning device and/or shift position of the patterning device relative. The system includes a first sensing sub-system that measures respective positions of a plurality of reference marks on the patterning device, and a second sensing sub-system that measures positions of the edge of the patterning device relative to the support. The system further includes a controller to determine an absolute position of the patterned portion and change in the absolute position based on measured respective positions of marks on the patterning device, determine a change in a relative position of the edge of the patterned device based on the measured edge positions, and estimate a change in a position of the patterning device relative to the support and a change in a pattern distortion of the patterned portion of the patterning device over a time period.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G03B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
