Laser device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Nov 7, 2016
filing date -
May 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

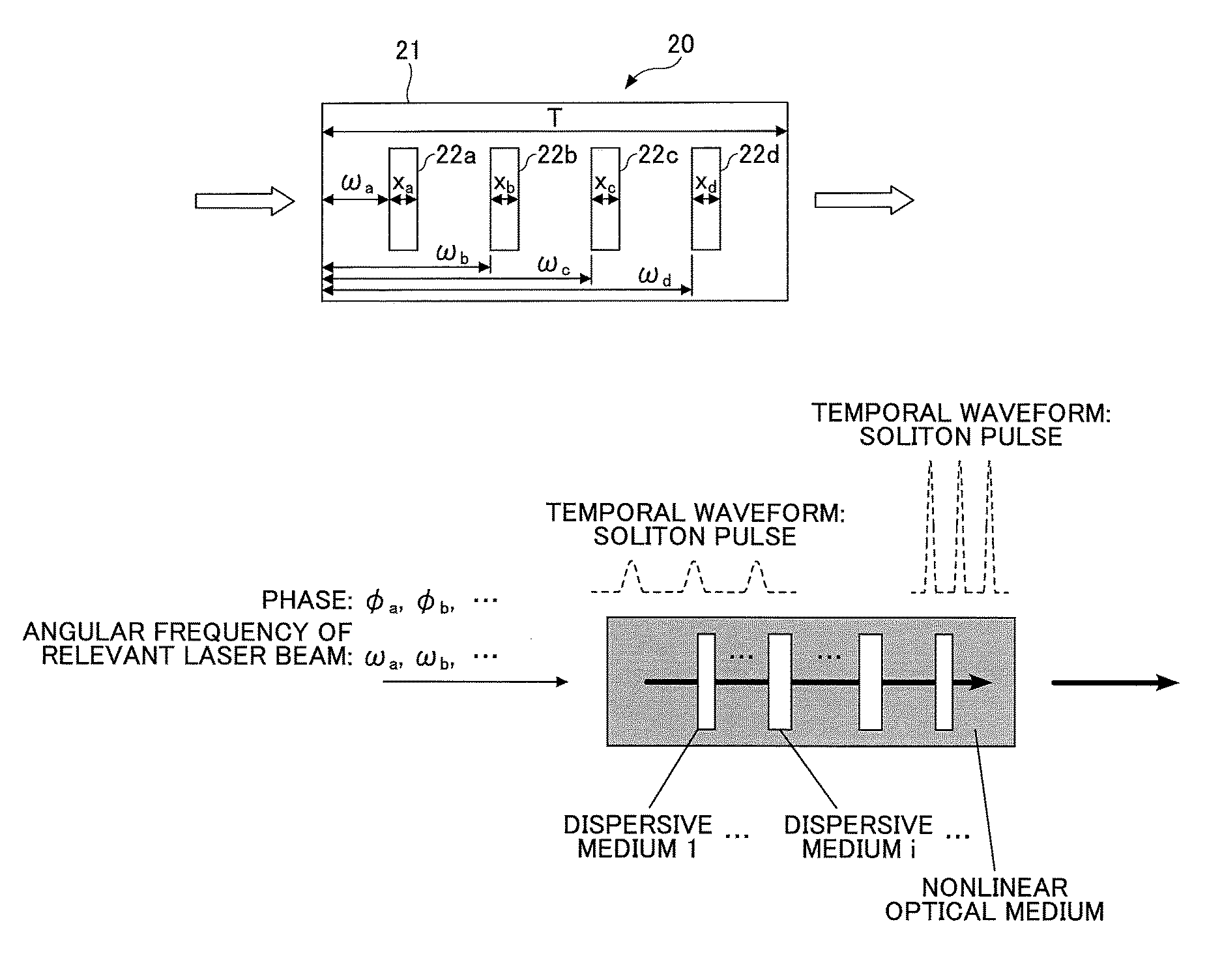

A laser device includes a light source that radiates a laser beam having one or more frequencies, and a nonlinear optical medium on which the laser beam is incident, the non-linear optical medium including at least one dispersive medium that is transparent and arranged along a direction in which the laser beam is radiated. The nonlinear optical medium drives a nonlinear optical process including generation of laser beams having different frequencies. The at least one dispersive medium has an effective thickness that causes a relative phase relationship among all the laser beams relevant to the nonlinear optical process to approximately satisfy a predetermined value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
