Method and apparatus for recovering refrigerant from an air conditioning system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Nov 14, 2014
filing date -
Dec 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

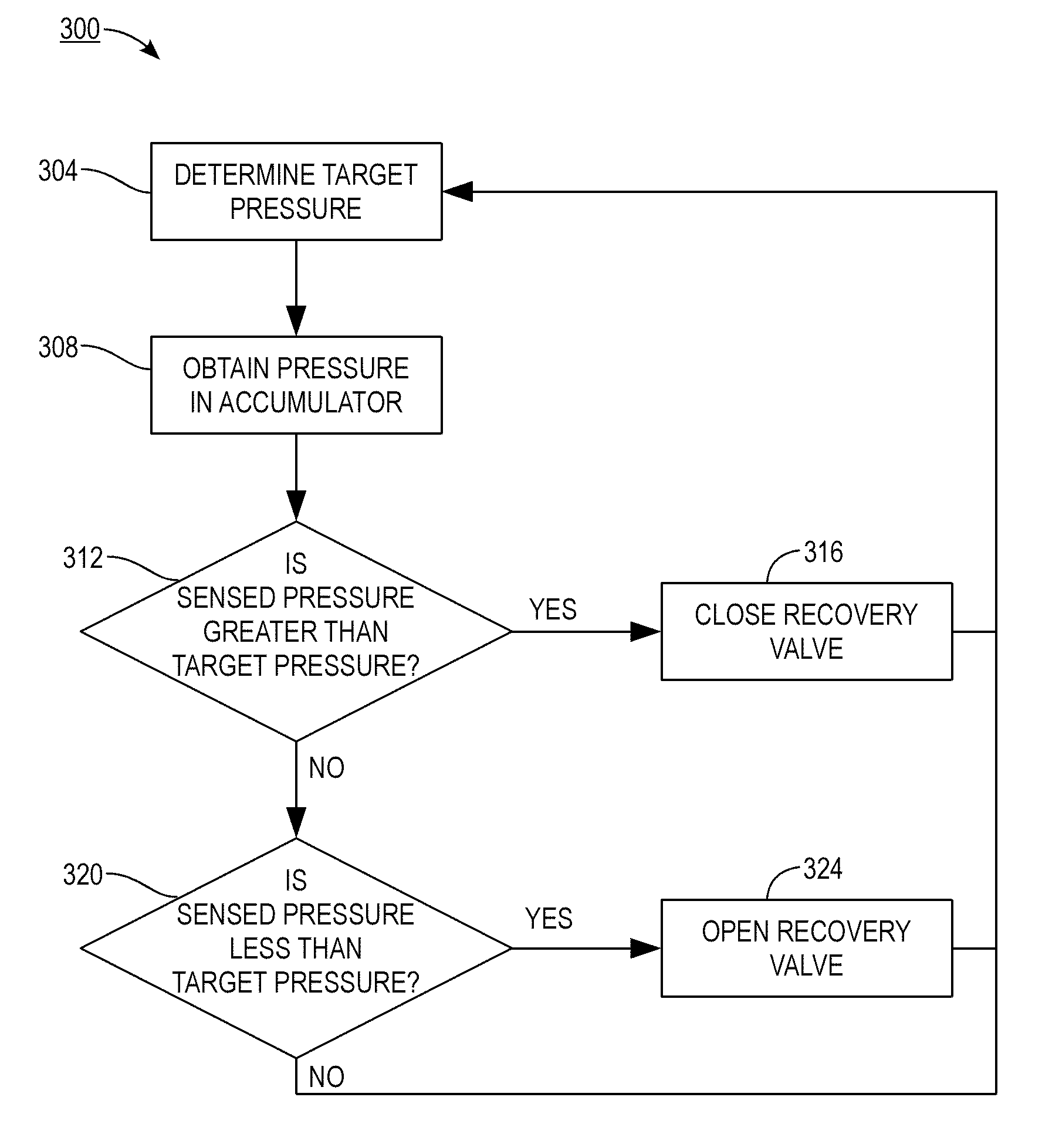

A refrigerant service system according to the disclosure includes an inlet port configured to connect to an air conditioning system, a recovery valve fluidly connected to the inlet port, an accumulator fluidly connected to the recovery solenoid valve and including a pressure transducer configured to generate an electronic signal corresponding to a pressure in the accumulator, and a controller. The controller is configured to determine a target pressure for the accumulator based upon a condition of the refrigerant, obtain a current pressure in the accumulator from the pressure transducer, and to operate the recovery valve based upon the accumulator target pressure to control flow of refrigerant from the air conditioning system to the accumulator based upon the obtained current pressure and the determined target pressure for the accumulator.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F25B Class
- 1044 Applications Filed
- 850 Patents Issued To-Date
- 81.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F25B Class
- 33.20 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
