Crimpable or swageable fluid power ferrules, couplings, systems and methods employing torque communication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Nov 18, 2009
filing date -
Nov 20, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

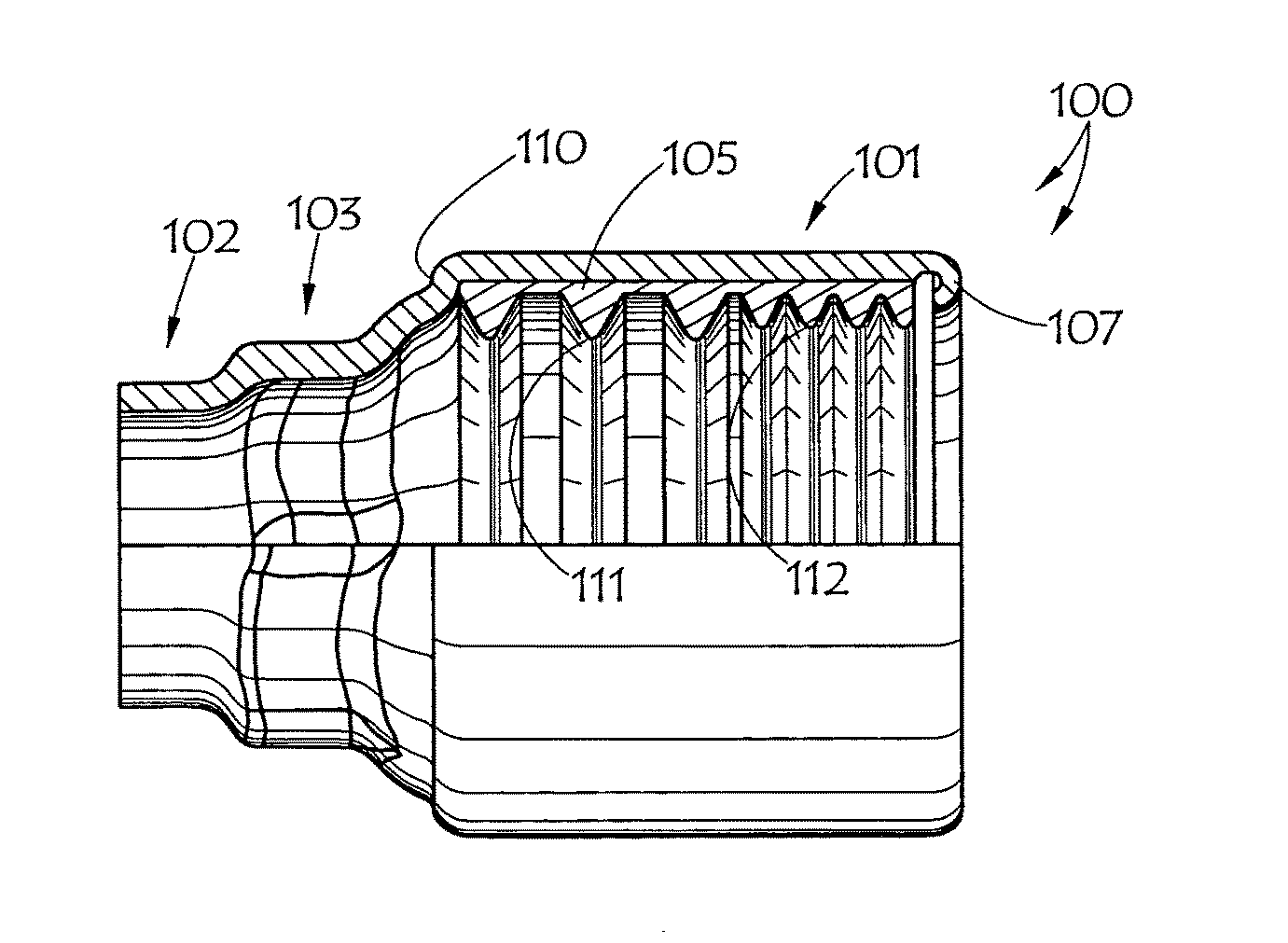

A hose end coupling unitary, one-piece radially crushable ferrule has a crushable socket portion, a deformable attachment portion, and a work hardened torque communication portion defined between the socket portion and the attachment portion. The torque communication portion may be formed in the unitary one-piece radially crushable ferrule, contiguous with the socket portion and the attachment portion. Corners of the torque communication portion may be strengthened and/or the torque communication portion work hardened by disposing a die set about the formed torque communication portion and pressing the torque communication portion into the die set, strengthening corners of the torque communication portion and work hardening the torque communication portion. A mandrel having a desired internal shape of the torque communication portion may be deployed inside the torque communication portion during pressing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- F16L Class
- 1008 Applications Filed
- 656 Patents Issued To-Date
- 65.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
