ADJUSTABLE IDLER SUPPORT SYSTEM FOR CONVEYOR BELT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Grant Date -
Jan 18, 2018
app pub date -
Jul 12, 2016
filing date -
Jul 12, 2016
priority date (Note) -
Granted
status (Latency Note)
Importance
Abstract

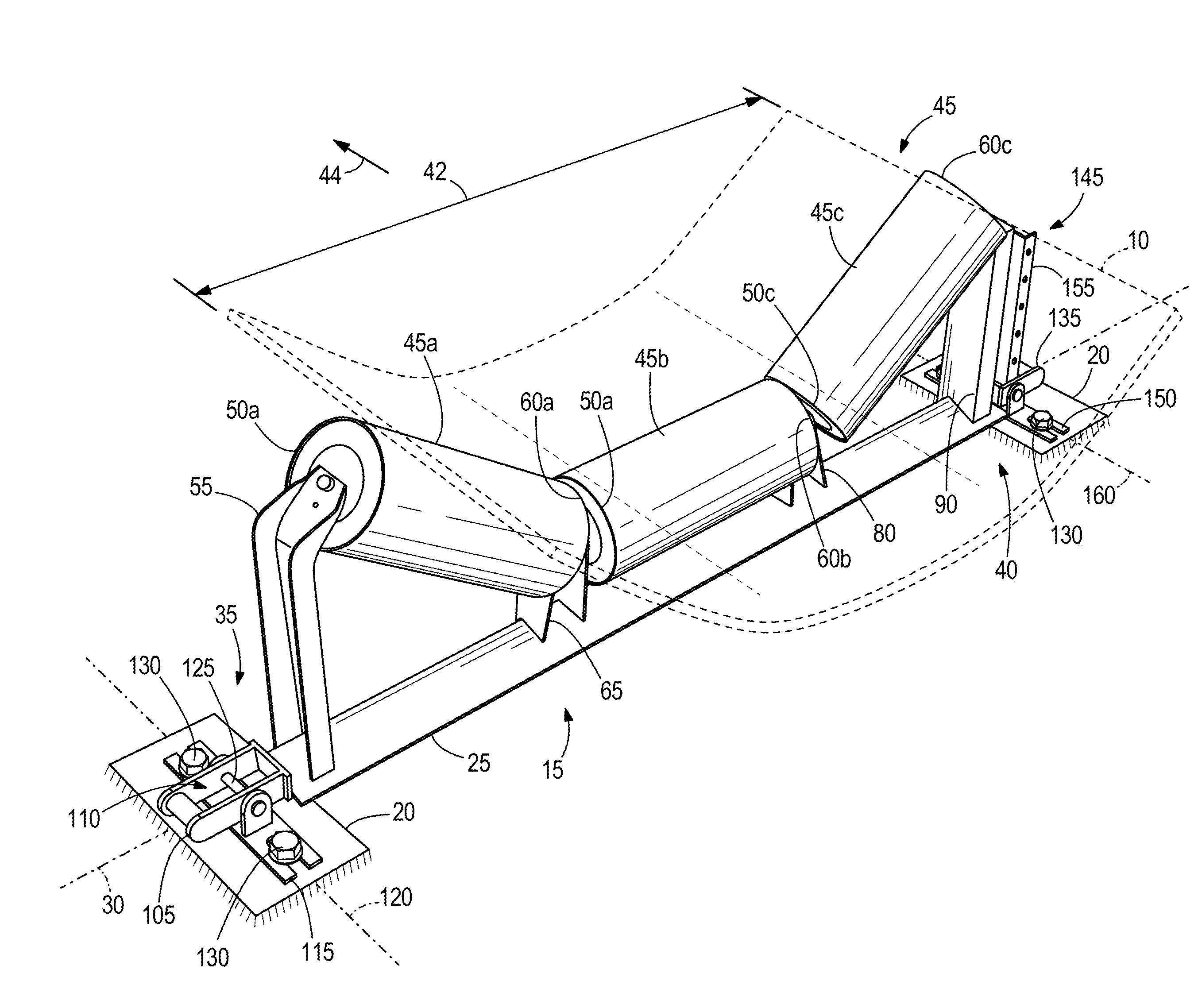

An idler support assembly is configured to support a conveyor belt thereon. The idler support assembly includes a frame having a first end and a second end, and a first idler roller coupled to the frame between the first and second ends. The first idler roller is configured to rotate about a first roller axis. The idler support assembly also includes a second idler roller coupled to the frame between the first and second ends. The second idler roller is configured to rotate about a second roller axis. The idler support assembly further includes a first base pivotably coupled to the first end of the frame about a first pivot axis, and an adjustable support selectively coupled to the second end of the frame in a plurality of positions. Each of the plurality of positions defines an angle in which the frame extends relative to the first base.
First Claim
Other Claims data not available
