Line capture devices for unmanned aircraft, and associated systems and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Mar 9, 2016
filing date -
Sep 27, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

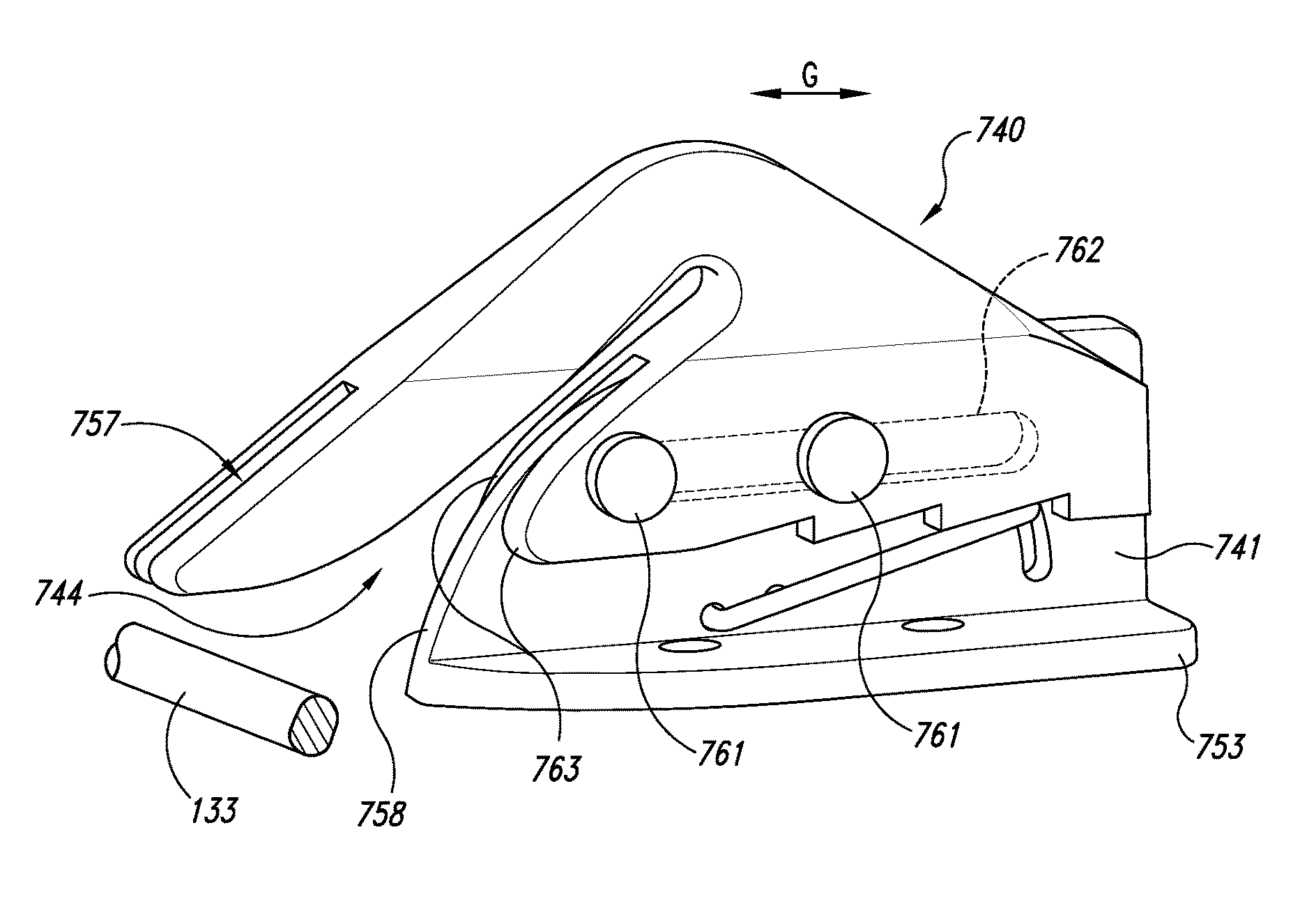

Line capture devices for unmanned aircraft, and associated systems and methods are disclosed. A system in accordance with a particular embodiment includes a line capture device body having a line slot with an open end and a closed end. A retainer is positioned proximate to the line slot and has a rotor with a plurality of rotor arms positioned to extend at least partially across the line slot as the rotor rotates relative to the body. A joint rotatably couples the rotor to the body, and a ratchet device is operably coupled to the rotor to allow the rotor to rotate in a first direction and at least restrict the rotor arm from rotating in a second direction opposite the first. In other embodiments, the retainer can include other arrangements, for example, one or more wire-shaped elements.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B64F Class
- 566 Applications Filed
- 372 Patents Issued To-Date
- 65.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 35 Citation Count
- B64F Class
- 95.65 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
