Fixture for on-roof installation object and fixing structure of on-roof installation object
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Aug 18, 2016
filing date -
Aug 18, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

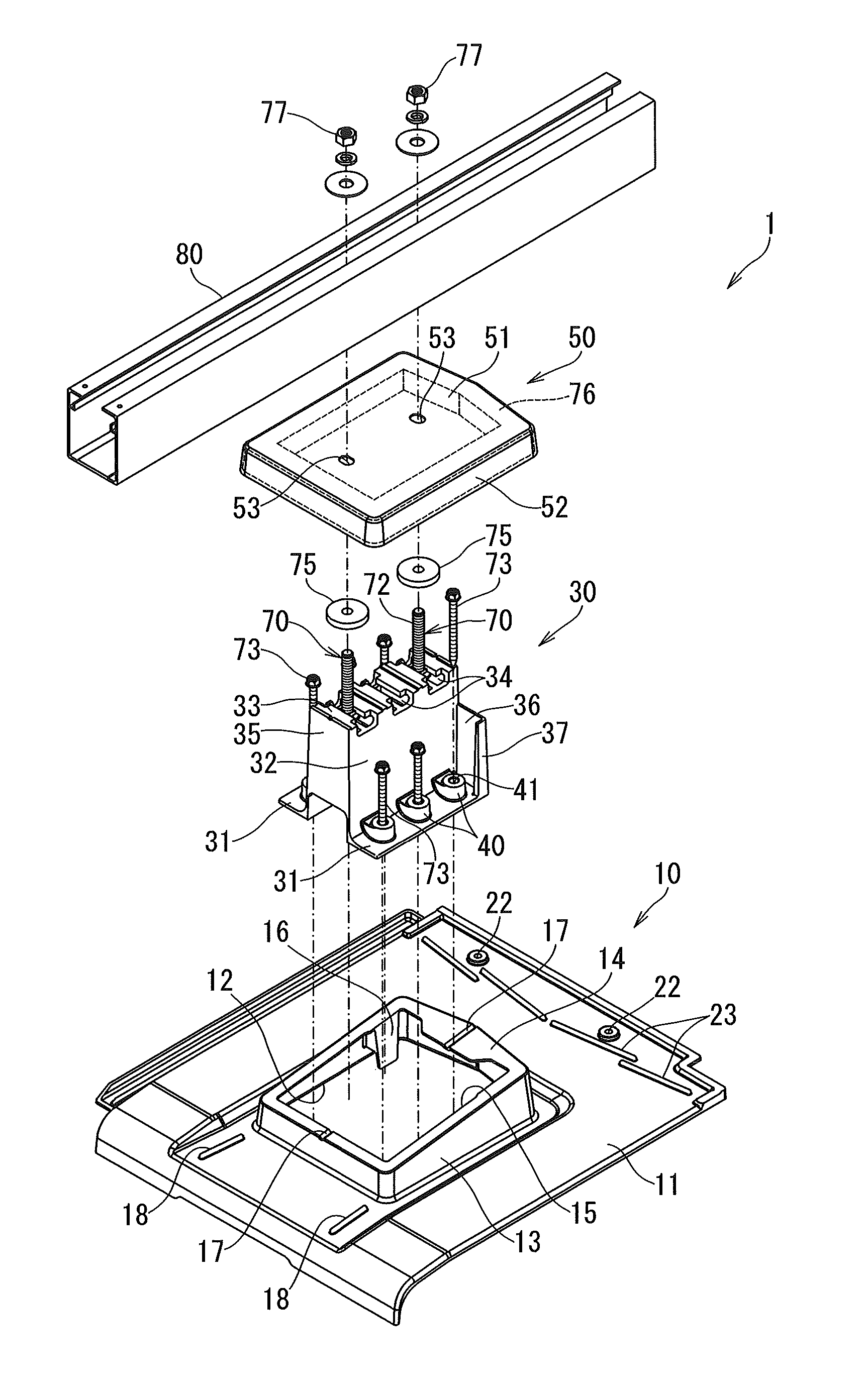

A fixture includes a substitutive roof member that includes a base part, a base opening, a tubular wall that is erected from a peripheral edge of the base opening, a top face that extends inwardly from a top end of the tubular wall and forms a top face opening, and a pair of guide surfaces that each extend downward from peripheral sides of the top face opening, the substitutive roof member being made of a metal; and a mounting base that includes a pair of planar bottom plates that is provided in such a size as to pass through the top face opening, a pair of rising walls that are each erected from inner sides of the bottom plates, a connection part that connects upper sides of the rising walls, and a fixing member mounting part that is exposed at the connection part for mounting a bolt.
