Graphical user interface and data transfer methods in a controlling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Nov 7, 2014
filing date -
Feb 14, 2011
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

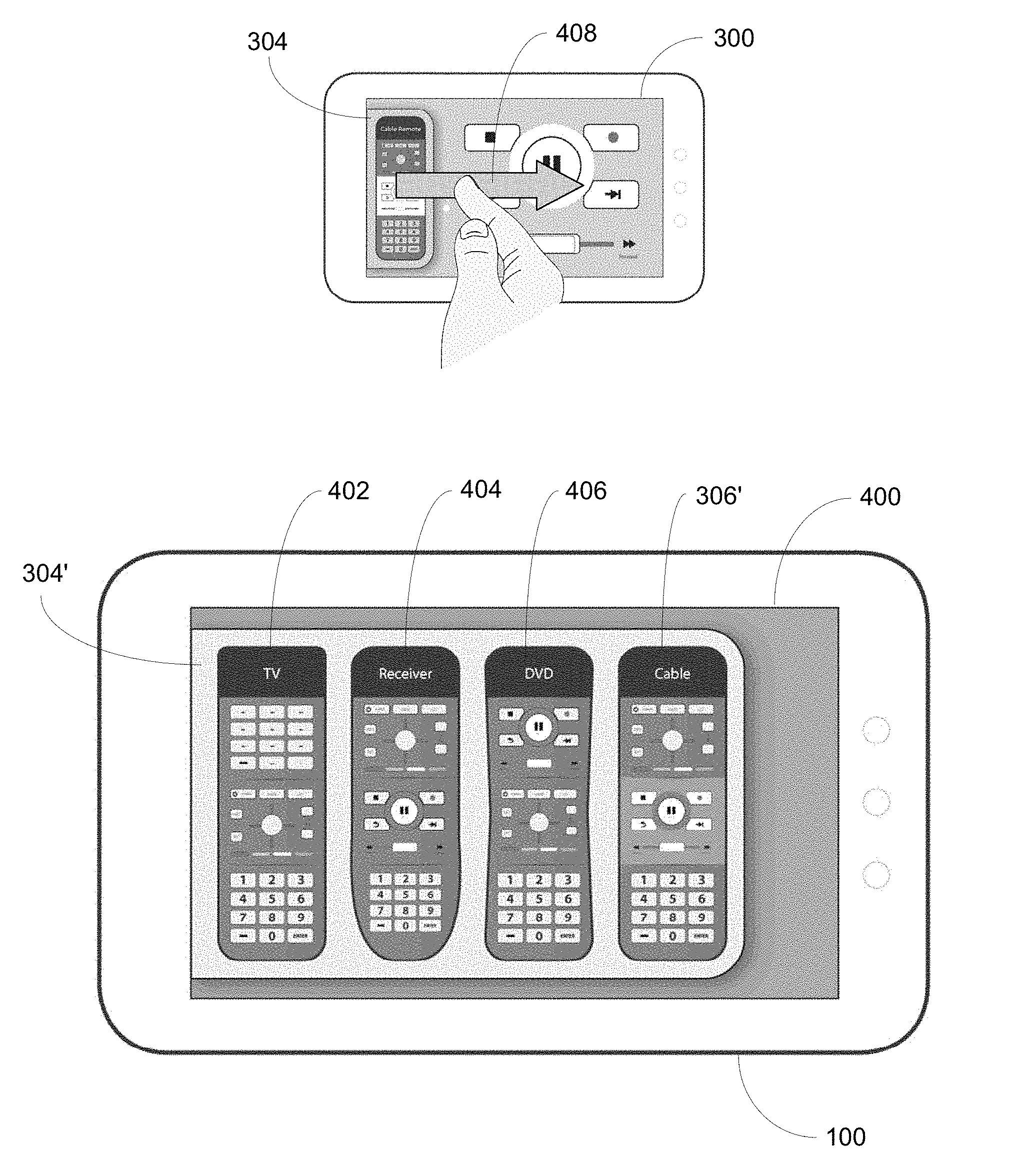

A smart device is provided with a main remote control application that may be configured using information. The main remote control application may present images of original remote controls corresponding to devices which are controllable by the configured main remote control application. In connection with a presented image of an original remote control, the display may present icons that are representative of a subset of the buttons of the original remote control. The user interface also allows a user to select amongst the images of the original remote controls to change which appliances are to be controlled via the user interface. A pop-up remote control widget may also be provided which may be invoked without switching to the main remote control application provisioned on the smart device.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
