Narrow crossbow with large power stroke
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Sep 9, 2016
filing date -
Dec 1, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

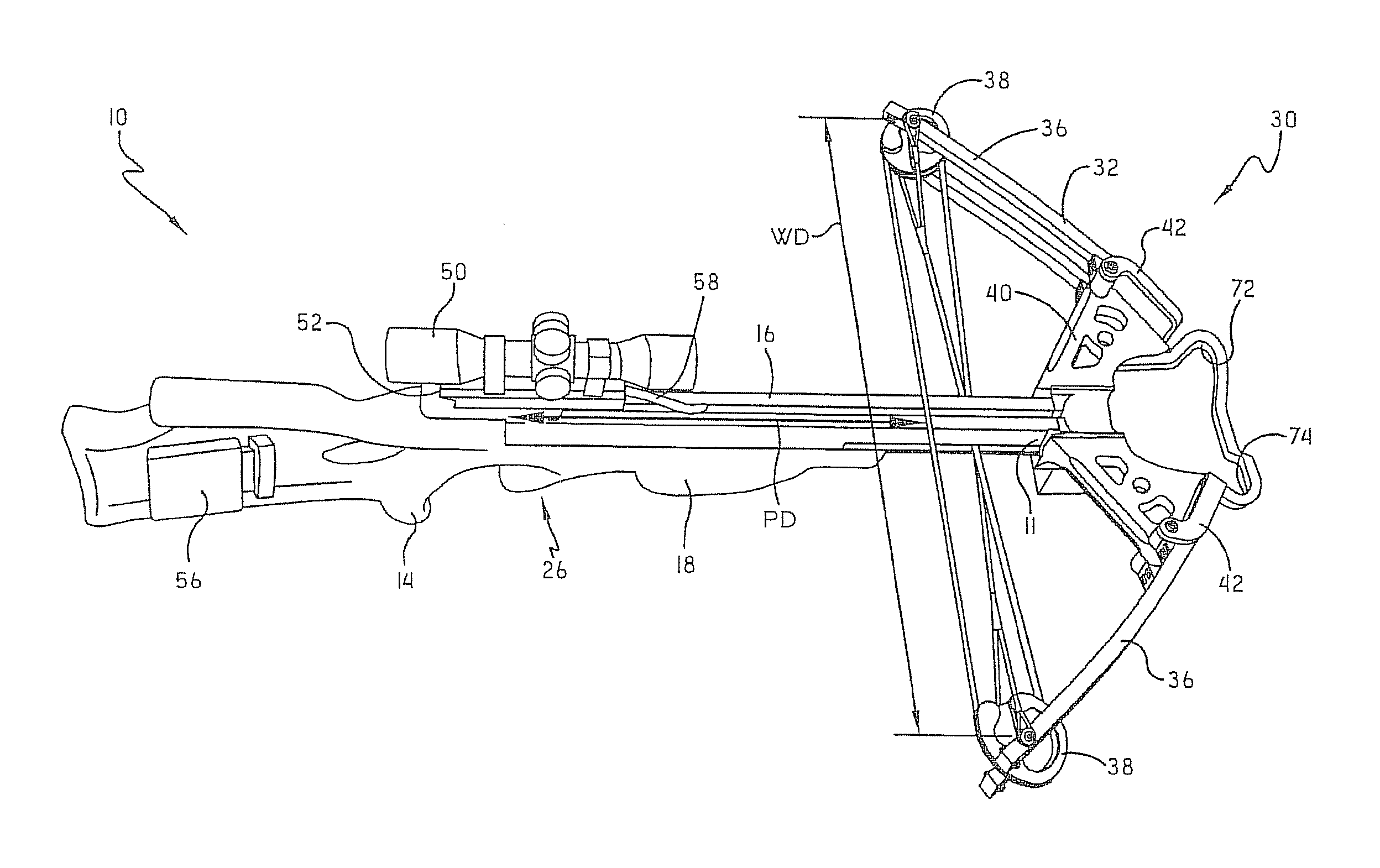

A crossbow may be a horizontal crossbow having a main beam and a bow assembly mounted to the main beam. The bow assembly may include: a bowstring; a riser attached to the main beam; a first bow limb; a second bow limb; a first wheel that is supported to the first bow limb; and a second wheel that is supported to the second bow limb. In some embodiments, the bow limbs may be separated at least as wide as a user's foot. In other embodiments, the bow assembly may include a trigger oriented parallel to pivot axes about which the wheels rotate. In yet other embodiments, a ratio of the distance between the wheels and the power stroke is less than 1.8.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F41B Class
- 238 Applications Filed
- 208 Patents Issued To-Date
- 87.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F41B Class
- 5.63 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
