Room heater
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Grant Date -
May 21, 2015
app pub date -
Nov 17, 2014
filing date -
Nov 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

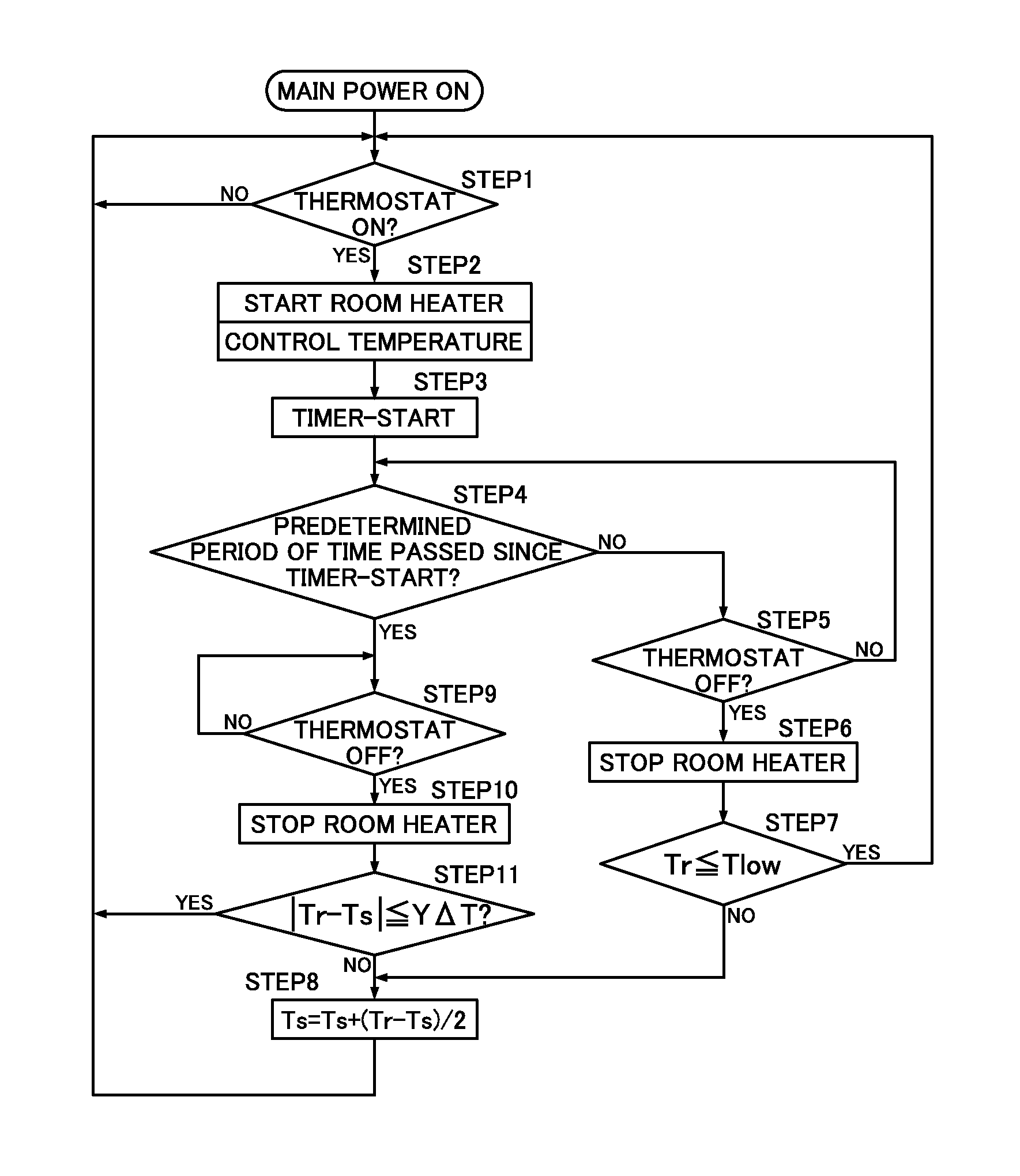

A room heater is operated on receiving an on-command from a thermostat when a detected temperature detected by a second room-temperature detector falls below a first reference temperature, and is stopped on receiving an off-command when the temperature detected by the second room-temperature detector is above a second reference temperature that is set higher than the first reference temperature or when the thermostat is manually operated to be switched off. A setting temperature for temperature control to be carried out when the on-command is received again is updated according to a difference between the set temperature and the temperature detected by the first room-temperature detector on receiving the off-command. When the off-command is received before passing a predetermined period of time after receiving the on-command, the updating of the set temperature is prohibited if the temperature detected by the first room-temperature detector is below a predetermined minimum lower reference temperature.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F24H Class
- 299 Applications Filed
- 234 Patents Issued To-Date
- 78.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
