Method and system for treating a liquefied gas
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
May 14, 2013
filing date -
May 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

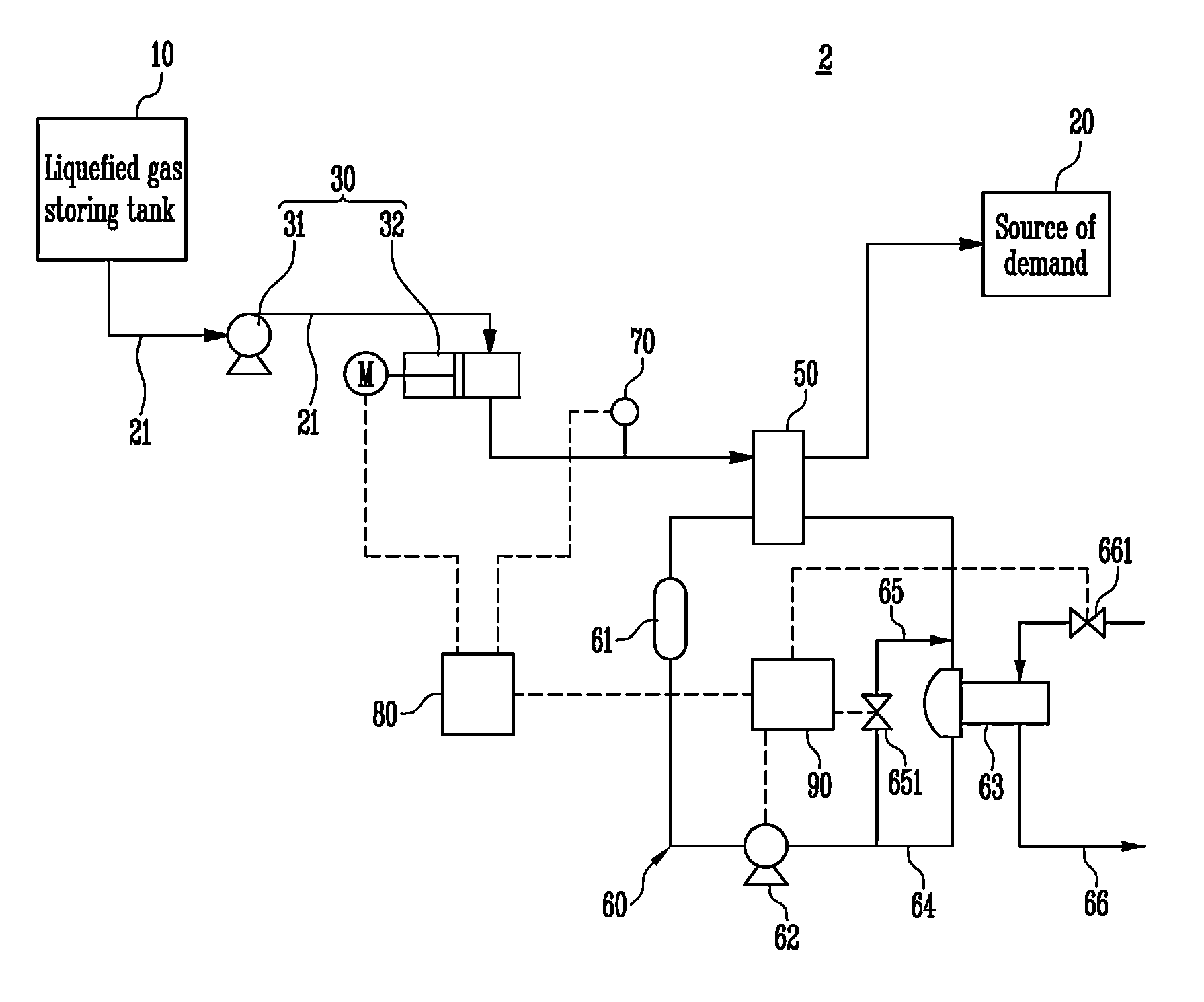

A liquefied gas treatment system includes: a liquefied gas supply line connected from a liquefied gas storing tank to a source of demand, a pump provided on the liquefied gas supply line, and configured to pressurize liquefied gas discharged from the liquefied gas storing tank, a heat exchanger provided on the liquefied gas supply line between the source of demand and the pump, and configured to heat exchange the liquefied gas supplied from the pump with heat transfer media, a media heater configured to heat the heat transfer media, a media circulation line connected from the media heater to the heat exchanger, and a controller configured to change a flow rate of the heat transfer media flowing into the media heater or calories supplied to the heat transfer media by the media heater on the basis of a flow rate of the liquefied gas supplied to the heat exchanger
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- C10L Class
- 429 Applications Filed
- 369 Patents Issued To-Date
- 86.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C10L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
