Quick connector assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Nov 20, 2014
filing date -
Nov 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

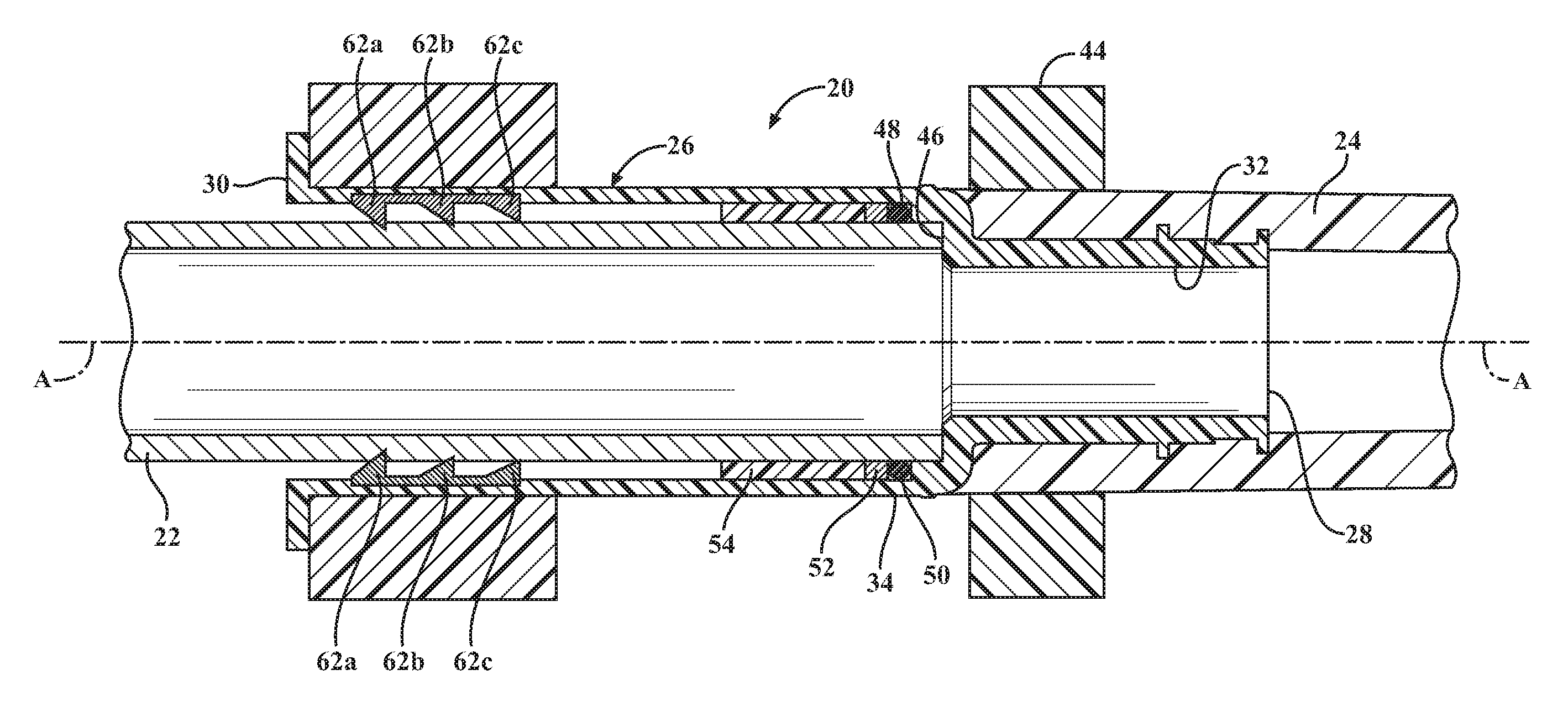

The connector assembly includes a housing with an open bore which extends along an axis from an open first end to an open second end. The housing further includes a plurality of fingers that are spaced circumferentially from one another and are deflectable in a radial direction. At least one of the fingers has a plurality of teeth that are spaced axially from one another and extend into the open bore of the housing for biting into the first tube to resist pull out of the first tube from the open bore. Each of the teeth also extends by a height to a leading edge of an engagement surface which also includes an angled portion that extends at an angle relative to the axis. The axially spaced teeth have at least one of differing heights and differing angles of the angled portions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16L Class
- 1655 Applications Filed
- 1375 Patents Issued To-Date
- 83.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F16L Class
- 26.55 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
