Method and apparatus for detecting plunger arrival
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Oct 22, 2015
filing date -
Jun 15, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

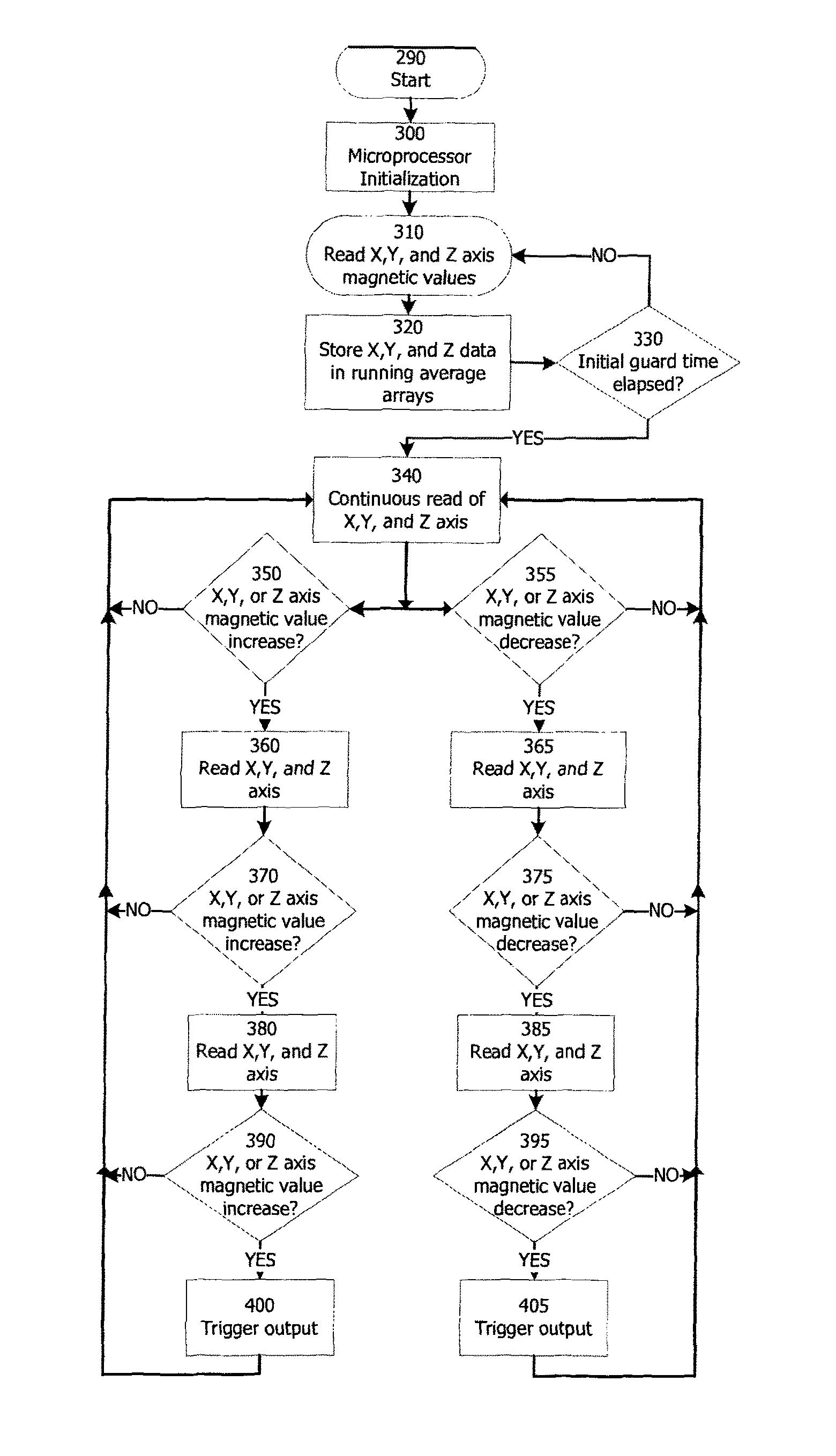

The disclosed device provides a high-accuracy plunger arrival detection system comprising a low-power magnetometer with high sensitivity and which is capable of sampling low or high intensity magnetic fields. The device processes gathered data from sensors, stores at least some processed data in memory, executes a trending algorithm which compares the magnetic field of the plunger to the ambient magnetic field or a predetermined set of initialization values, and generates an output which is relayed to a well controller. An output signal may be via hard wire, RF, wireless or other known means. In addition, the implementation of two sensing devices mounted in series and in spaced relation to each other, can provide for an actual plunger average velocity. An actual plunger average velocity, as opposed to approximate average velocity, can be used to better optimize well control and improve safety of the overall well production system.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G05B Class
- 4068 Applications Filed
- 2793 Patents Issued To-Date
- 68.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
