Cable anchorage with bedding material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Grant Date -
Apr 28, 2016
app pub date -
May 30, 2014
filing date -
May 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

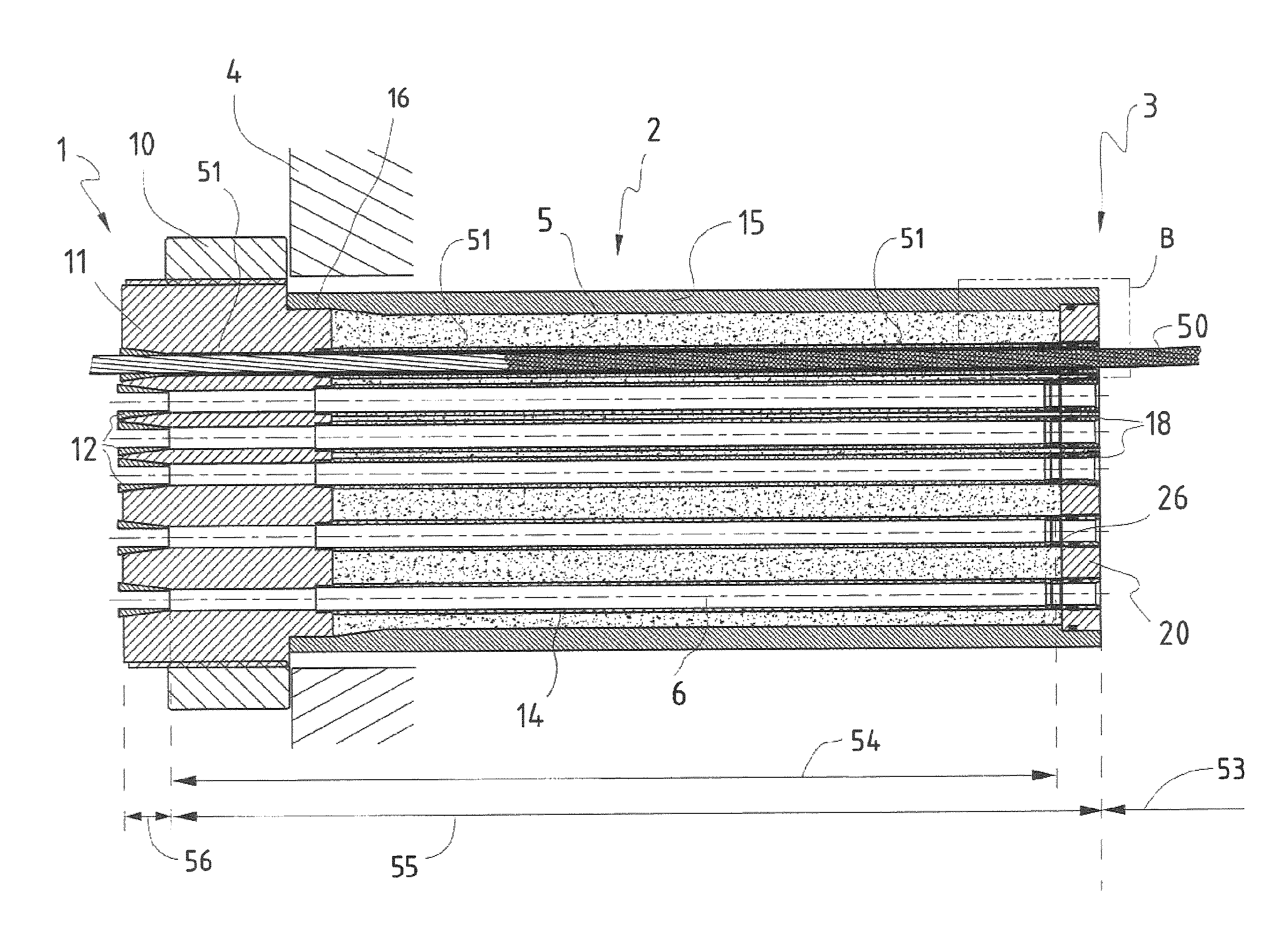

A cable anchorage anchors a cable, for example a stay cable having multiple strands (50), against a longitudinal tension force. The anchor block (11) of the anchorage includes multiple channels, through which the strands (50) are individually threaded. Once in position and tensioned, the space around the strands (50) in the anchor block (11) is injected with a liquid, such as a polyurethane, which subsequently sets to form a tough elastic bedding material (51) within the anchor block (11). The elastic bedding material (51) has a durometer at 23° C. in the range 10 to 70 Shore, so as to form bedding cushion extending substantially around the strand (50) in the strand-channel (6) along a bedding region (54) of strand-channel (6), the bedding cushion reducing the bending stresses in the strand (50) by absorbing bending stresses along the bedding region (54).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E04C Class
- 500 Applications Filed
- 396 Patents Issued To-Date
- 79.20 % Issued To-Date
