Cantilever box
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Dec 24, 2013
filing date -
Dec 26, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

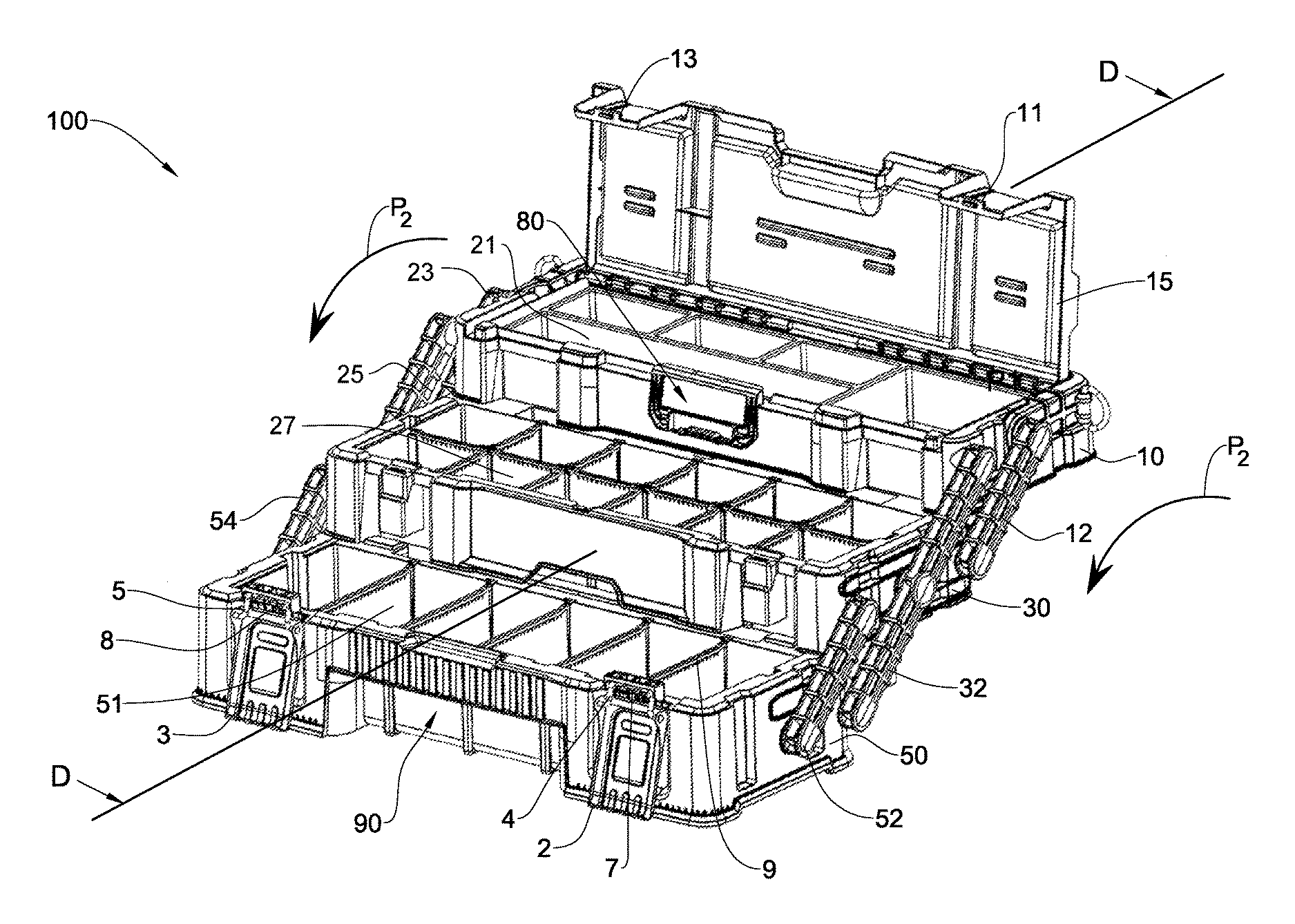

Provided is a cantilever box including at least two trays, including a lowermost tray and an uppermost tray, interconnected therebetween by cantilever links pivotally secured to the trays, the trays are convertible at least between a stacked position, and an extended position; a first gripping portion, disposed at the uppermost tray, configured for being gripped by a user for converting the trays between their extended position and their stacked position; and a securing mechanism switchable between a locked state in which when the trays are at their extended position, the securing mechanism is configured for arresting a locking member, thereby locking the trays at their extended position; and an unlocked state in which the securing mechanism is disengaged from said locking member, thereby facilitating displacement of the trays from their extended position into their stacked position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- B65D Class
- 91.66 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
