Packaging aftertreatment system of engine of a marine vessel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Aug 24, 2015
filing date -
Aug 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

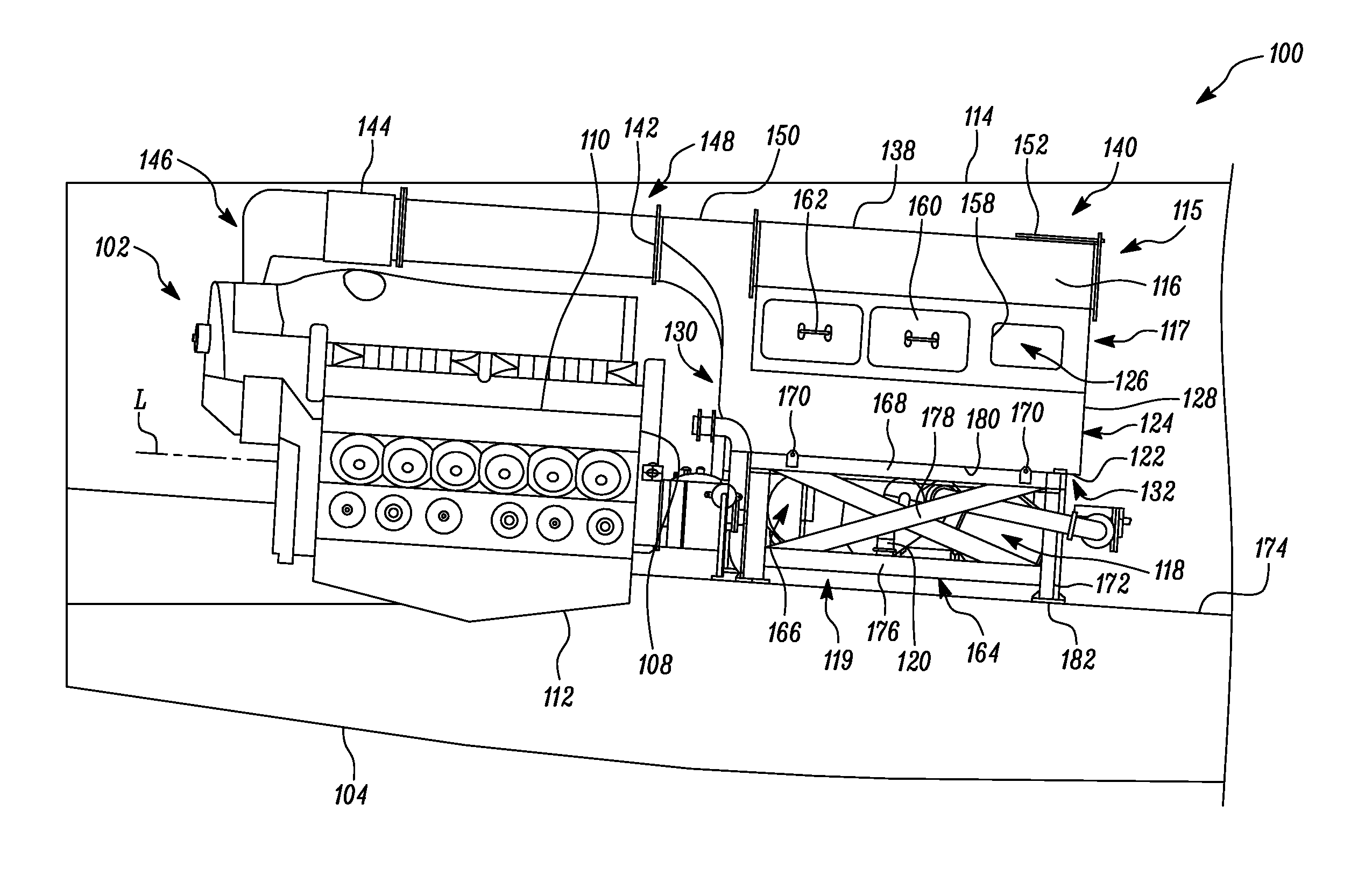

A packaging system for enclosing an aftertreatment module associated with an engine is described. The packaging system includes a housing structure configured to enclose the aftertreatment module therein, the housing structure being coupled to an exhaust conduit of the engine. The housing structure includes a base portion and a plurality of side portions extending from the base portion. The base portion and the plurality of side portions define a chamber for receiving the aftertreatment module therein. Further, the packaging system includes a equipment rack configured to receive one or more components of the accessory system. The equipment rack includes a top end and a bottom end, the top end being distal from the bottom end and configured to couple with the base portion of the housing structure. The bottom end of the equipment rack is supported on a floor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B63H Class
- 408 Applications Filed
- 342 Patents Issued To-Date
- 83.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B63H Class
- 31.06 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
