Exposing printing plates using light emitting diodes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Mar 31, 2016
filing date -
May 8, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

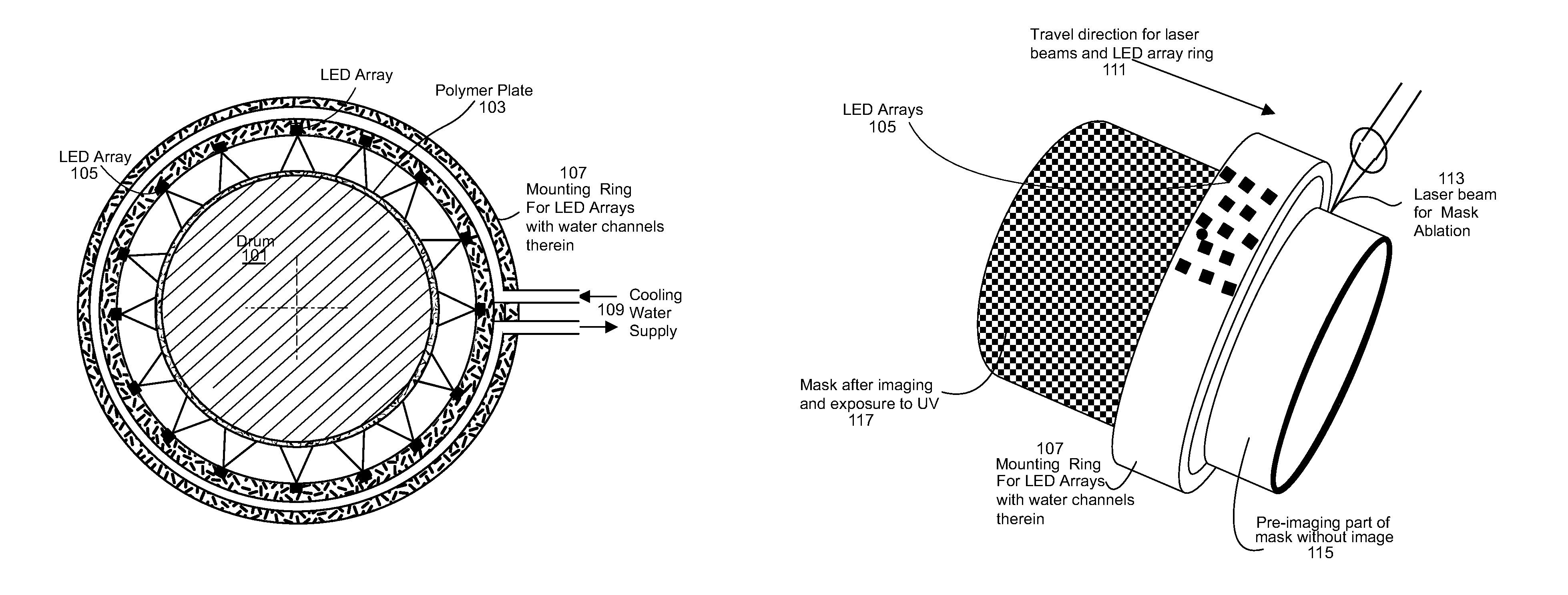

An apparatus comprises: (a) a rotatable drum configured to have a UV-curable printing plate with an ablatable layer thereon, placed thereon; (b) at least one laser beam to image the plate on the drum by ablating some of the ablatable layer according to image data to form an imaged plate; (c) an unloading area onto which a plate is movable when unloaded; and (d) a plurality of UV LEDs configured to apply UV radiation to the back of the UV-curable plate or to both the front and back of the UV-curable plate during or after the unloading of the imaged plate.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- B41C Class
- 62 Applications Filed
- 40 Patents Issued To-Date
- 64.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B41C Class
- 23.08 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
