System and method for controlling the iontophoretic delivery of therapeutic agents based on user inhalation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Grant Date -
May 7, 2015
app pub date -
Jan 7, 2015
filing date -
Feb 12, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

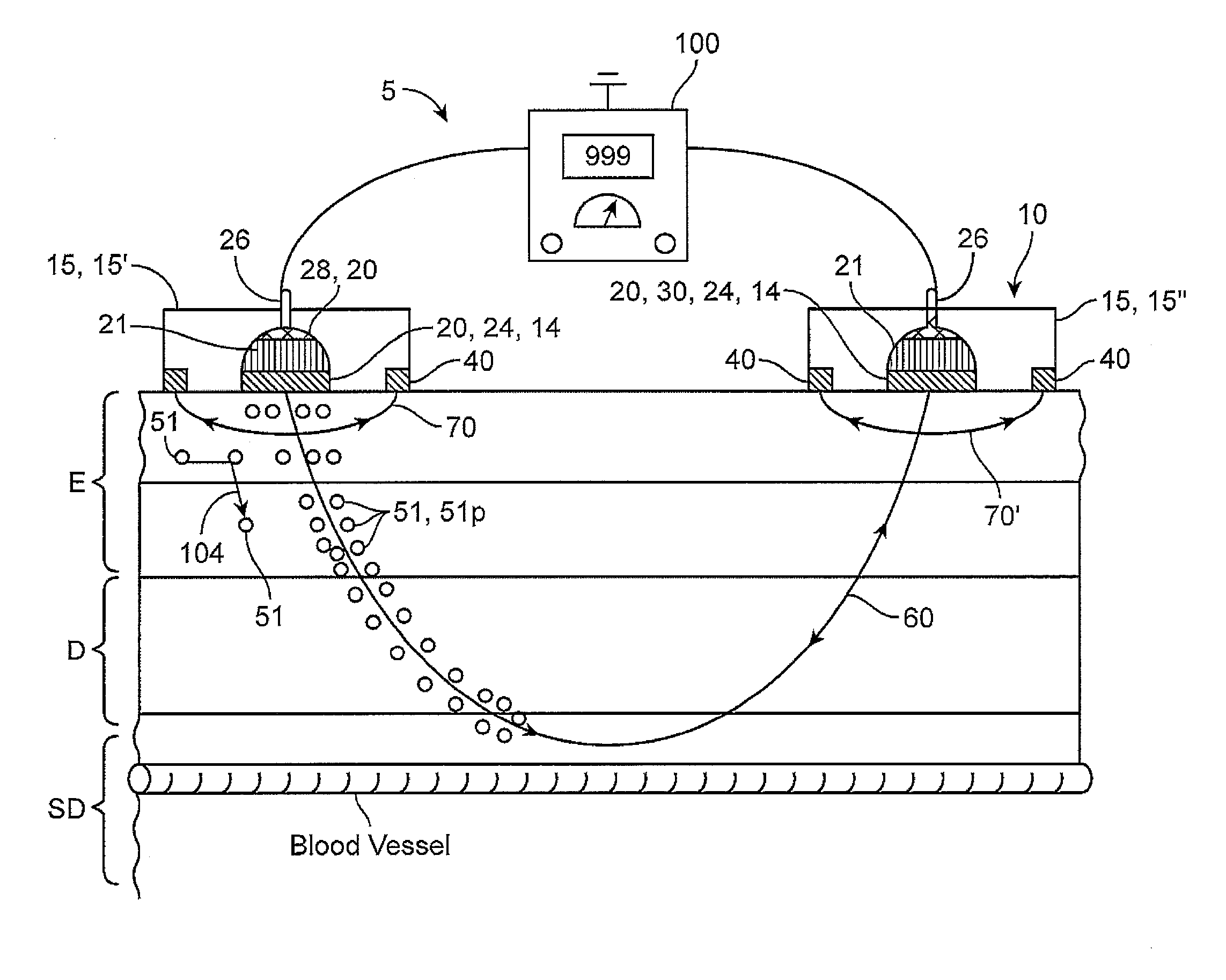

Embodiments of the invention provide methods for transdermal delivery of therapeutic agents for treatment of addictive cravings e.g., from nicotine. Embodiment of a method for such delivery comprises positioning at least one electrode assembly in electrical communication with a patient's skin. The assembly includes a solution comprising a therapeutic agent which passively diffuses into skin. A dose of agent is delivered from the assembly into skin during a first period using a first current having a characteristic e.g., polarity and magnitude, to repel agent out of the assembly. During a second period, a second current having a characteristic to attract agent is used to retain agent in the assembly such that delivery of agent into skin is minimized. In particular embodiments, a dose of agent may be delivered on-demand using an input from the patient using an inhalation sensing device which mimics an inhaled form of tobacco.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61K Class
- 16157 Applications Filed
- 11882 Patents Issued To-Date
- 73.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61K Class
- 45.09 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
