Cartomizer structure for automated assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Jul 18, 2014
filing date -
Jul 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

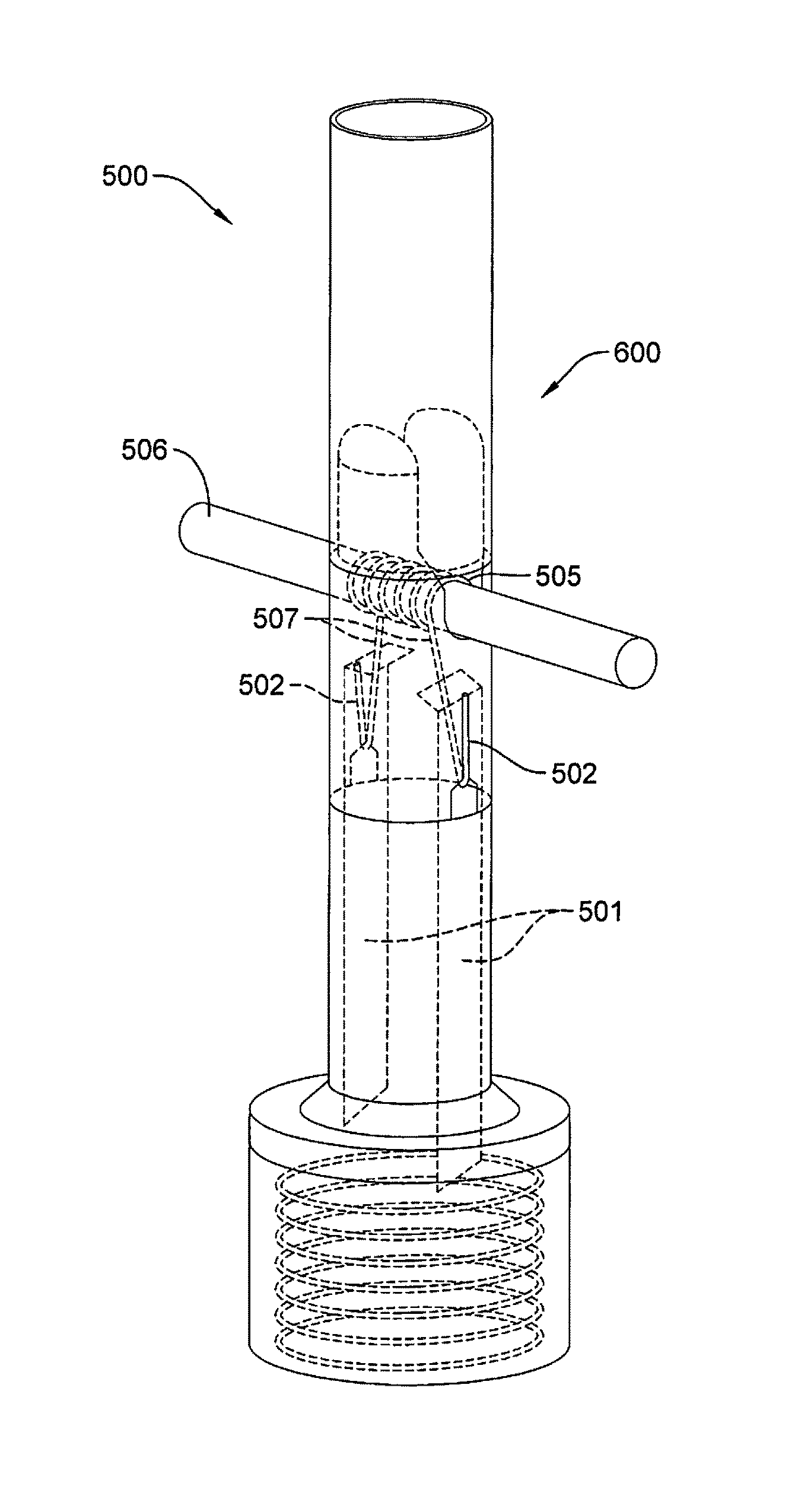

A cartomizer assembly of an electronic cigarette which is formed from automated assembly compatible parts comprises a container assembly including a container and a heater coil surrounding a wick in an airflow space of the container. The entire coil of the heater coil is inside the container and the heater coil is configured to heat liquid on the wick to generate an aerosol mist during a vaporization process. A liquid storage space is in liquid communication with the wick and is operable to supply liquid to the wick. The heater, the wick, and the container are shaped such that the heater and wick can be dropped into the container during automated assembly thereof and be directed to and located at a desired location in the container.
