Power supply having reduced transformer commutation noise
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Oct 6, 2015
filing date -
Oct 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

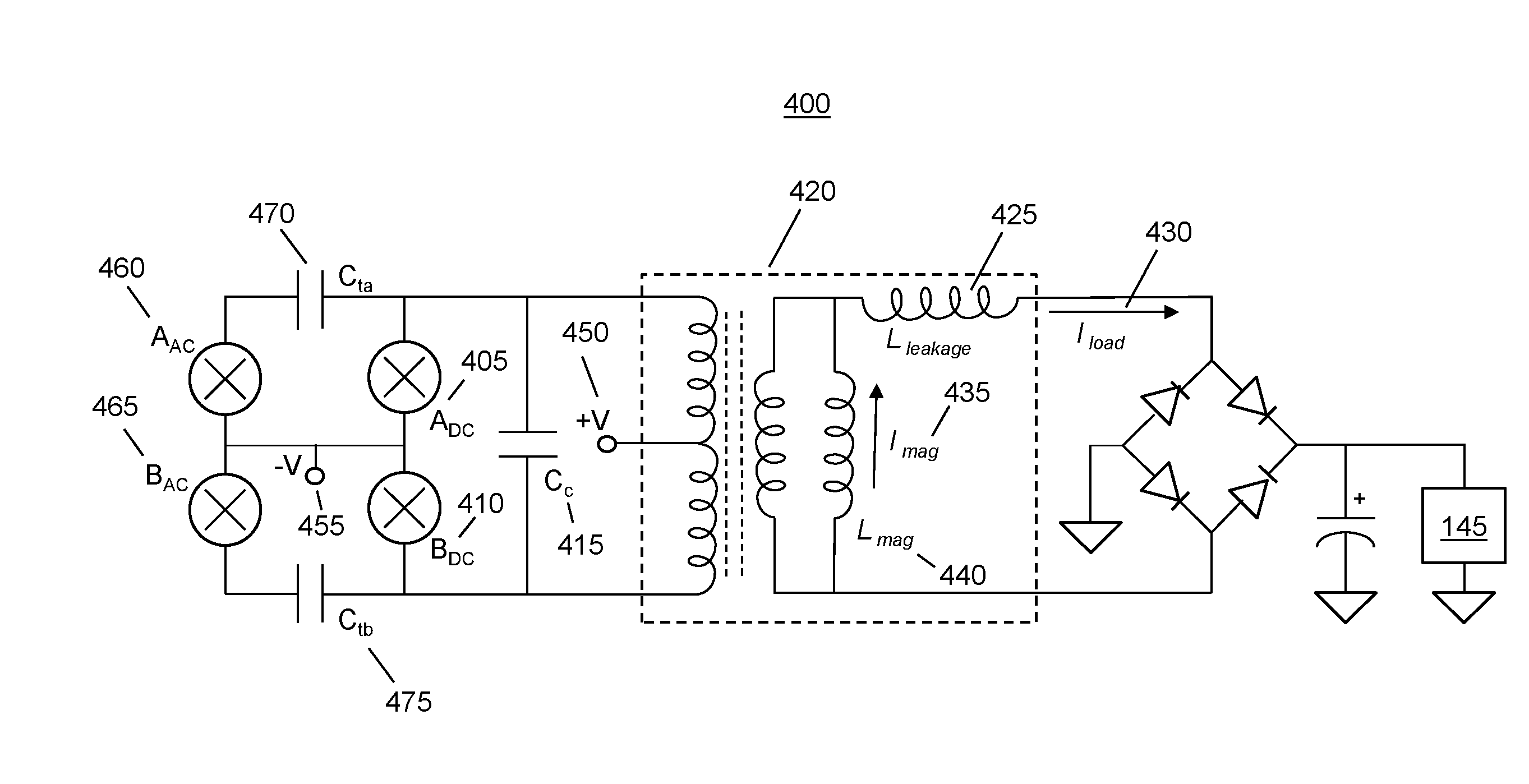

Embodiments of the present invention provide improved techniques and devices for reducing transformer commutation distortion caused by large load currents. Traditional power supplies which have two or more phases typically commutate a transformer during the end of each phase. When the load current is large, energy stored in the transformer's leakage inductance can cause undesirable effects during commutation. Embodiments of the present invention reduce these effects by lowering the voltage across the primary side of the transformer prior to commutation. In one embodiment, a capacitor is added to the primary side of the transformer. A switch directs current through the capacitor prior to commutation, allowing the capacitor to absorb the transformer's leakage inductance energy and lower the primary side voltage. Other suitable components, such as resistors, diodes, transistors, or additional transformer windings, may also be used to reduce the primary-side voltage prior to commutation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
