Mechanism to raise and lower the height of keys within a keyboard
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Grant Date -
Dec 14, 2017
app pub date -
Jul 26, 2016
filing date -
Jun 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

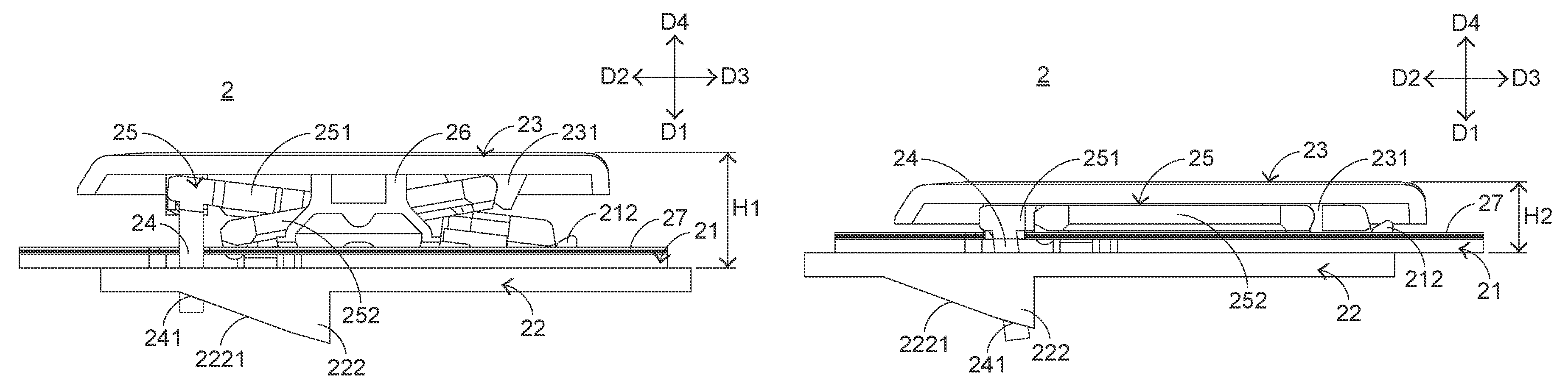

A key structure includes a supporting plate, a keycap, a scissors-type connecting element, a movable element and a coupling structure. The keycap is disposed over the supporting plate. The coupling structure is connected with the scissors-type connecting element and the movable element. For operating the key structure, the cooperation of the movable element and the coupling structure allows the keycap to be at a higher first height. Consequently, the tactile feel of depressing the key structure is enhanced. Moreover, the cooperation of the movable element and the coupling structure can lower the height of the keycap. Consequently, the key structure has a slim appearance.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01H Class
- 20.21 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
