Photomask including transfer patterns for reducing a thermal stress
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Nov 4, 2015
filing date -
Apr 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

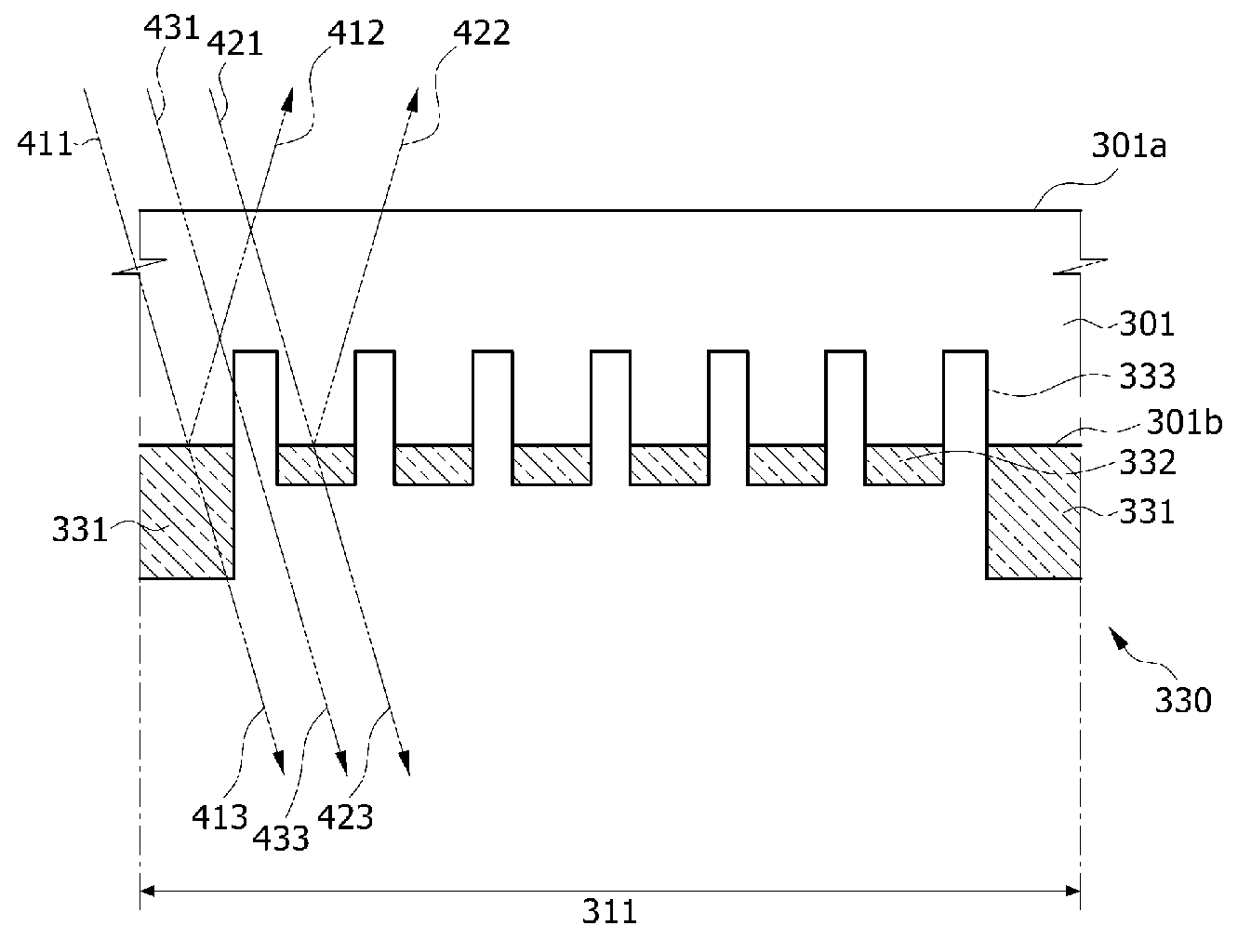

A photomask includes a light transmission substrate, and a transfer pattern disposed over the light transmission substrate, a shape of the transfer pattern being transferred onto a wafer by an exposure process. The transfer pattern comprises a first transfer pattern having a closed loop shape and having a first thickness, and a plurality of second transfer patterns disposed in an opening surrounded by the first transfer pattern, the plurality of second transfer patterns being arrayed in a first direction such that adjacent second transfer patterns are spaced apart from each other by a first distance, the second transfer patterns having a second thickness which is less than the first thickness of the first transfer pattern.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G03F Class
- 1815 Applications Filed
- 1458 Patents Issued To-Date
- 80.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G03F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
