Motion-based radiograph interlock systems, structures, and processes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Oct 13, 2015
filing date -
Sep 13, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

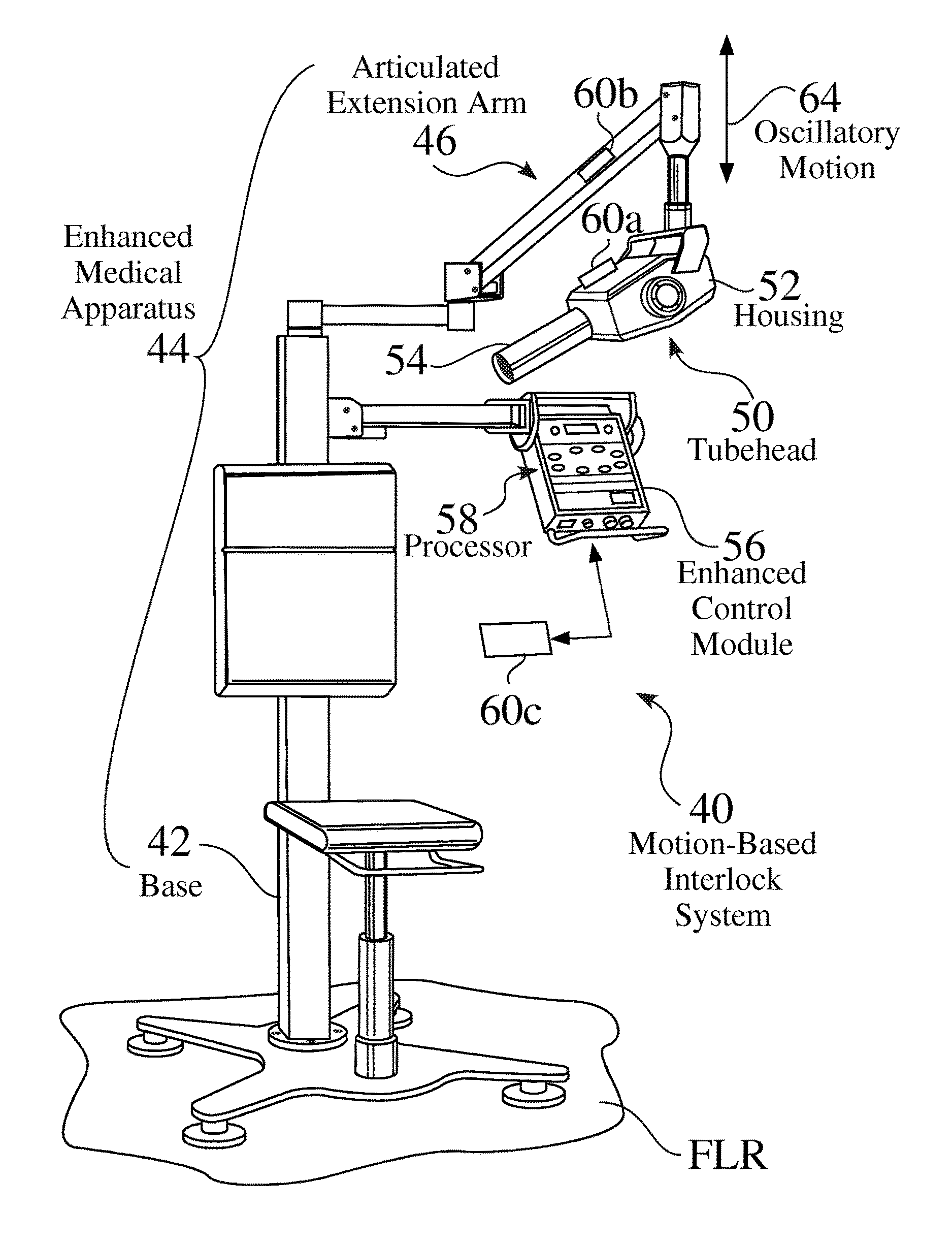

A motion-based interlock apparatus, system, and method prevent an x-ray source in an x-ray machine from activating if the current relative motion between the x-ray source and an image receptor would compromise the quality of the resulting plain radiograph. The system activates the interlock based on either or both of the velocity and acceleration of the tubehead, as measured by instrumentation corresponding to any of the tubehead, the extension arm, or off board the x-ray machine. The system may preferably compare the measured motion against one or more acceptable motion thresholds. If the measured motion exceeds one or more of the acceptable motion thresholds, exposure may preferably be delayed until the motion of the tubehead subsides. By ensuring that the image is not exposed while the tubehead is moving substantially, the quality of the resultant radiograph is improved.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01N Class
- 11310 Applications Filed
- 8345 Patents Issued To-Date
- 73.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
