Method of producing gasket and gasket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Jul 24, 2015
filing date -
Jul 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

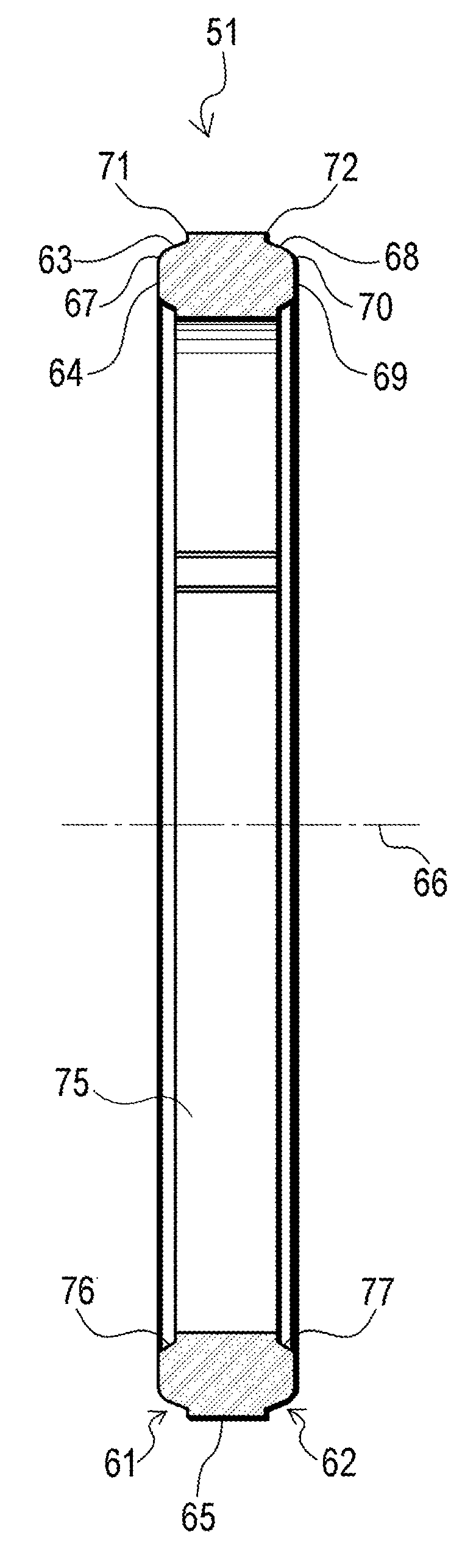

Abstract
A method of producing a gasket in which burrs can be prevented from being formed, and a mold failure can be suppressed, and a gasket are provided. A method of producing a gasket includes: a step S1 of preparing a metal mesh member and expanded graphite; a step S2 of placing the metal mesh member around the expanded graphite in a manner that a long belt-like composite body in which the expanded graphite is enveloped by the metal mesh member is formed; a step S4 of adjusting the shapes of longitudinal end portions of the composite body in a manner that, in the short-side direction of the composite body, the width dimensions of the longitudinal end portions of the composite body are smaller than the width dimension of a longitudinal middle portion of the composite body; a step S5 of spirally winding the composite body in a manner that a tubular body in a multiply wound state in which an axial direction coincides with the short-side direction of the composite body is formed; and a step S6 of compress molding the tubular body in the axial direction of the tubular body.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
