Atmospheric balloon system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Mar 4, 2016
filing date -
Dec 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

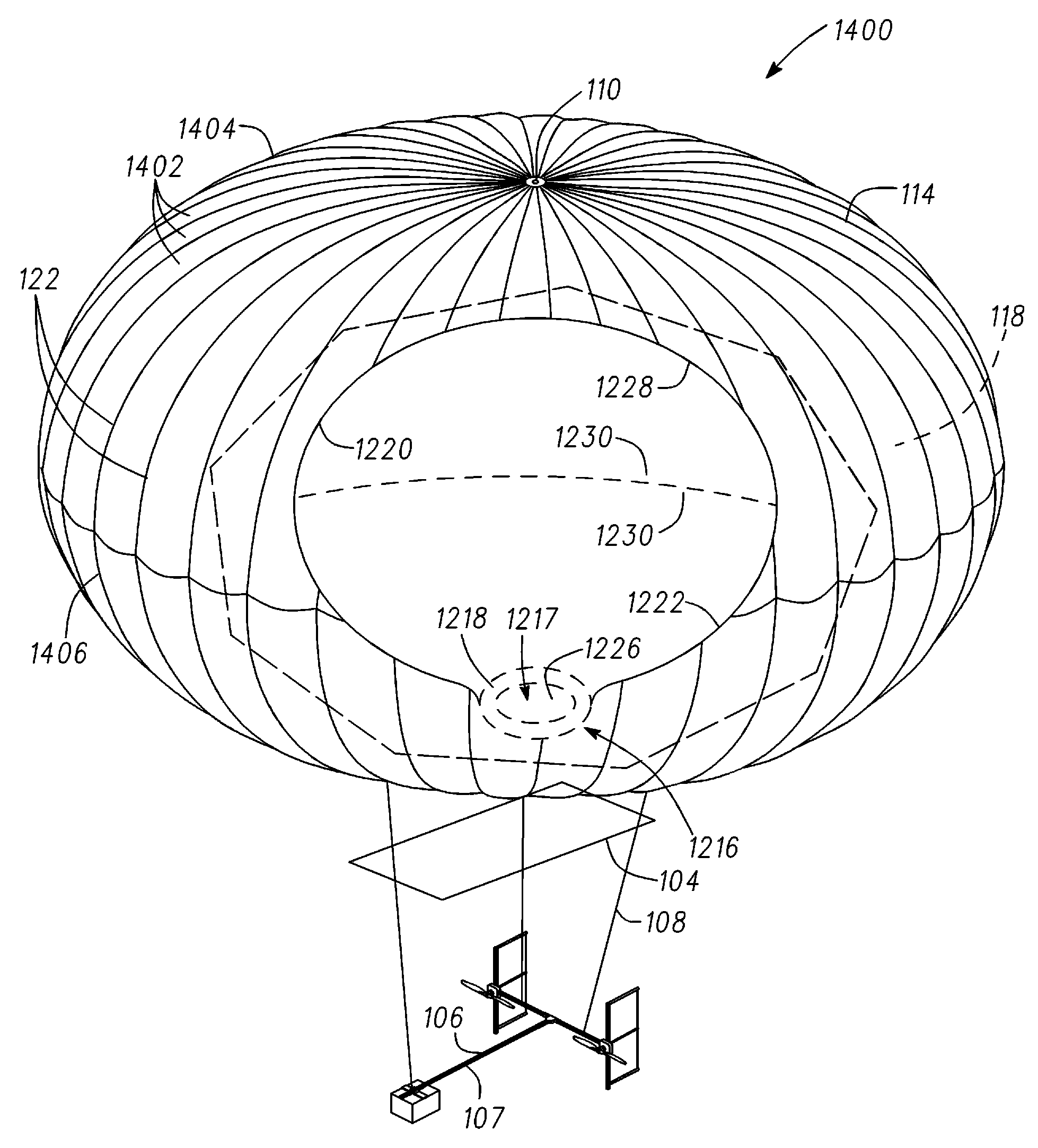

A balloon system includes a balloon having a balloon membrane extending between an upper apex and a lower apex opening. The lower apex opening extends through the balloon membrane at a balloon lip. A ballonet is within the balloon. The ballonet is coupled with the balloon membrane at the lower apex opening. The ballonet includes a lower ballonet panel having a lower perimeter edge and a ballonet orifice extending through the lower ballonet panel at a ballonet lip and an upper ballonet panel having an upper perimeter edge. The upper and lower ballonet panels are coupled along the respective upper and lower perimeter edges. A lower apex fitting couples the ballonet with the balloon at the balloon lip of the lower apex opening.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- B64D Class
- 2413 Applications Filed
- 1755 Patents Issued To-Date
- 72.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B64D Class
- 19.15 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
