Rear-view mirror assembly for motor vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 19, 2017
Issued Date -
N/A
app pub date -
Nov 13, 2015
filing date -
Nov 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

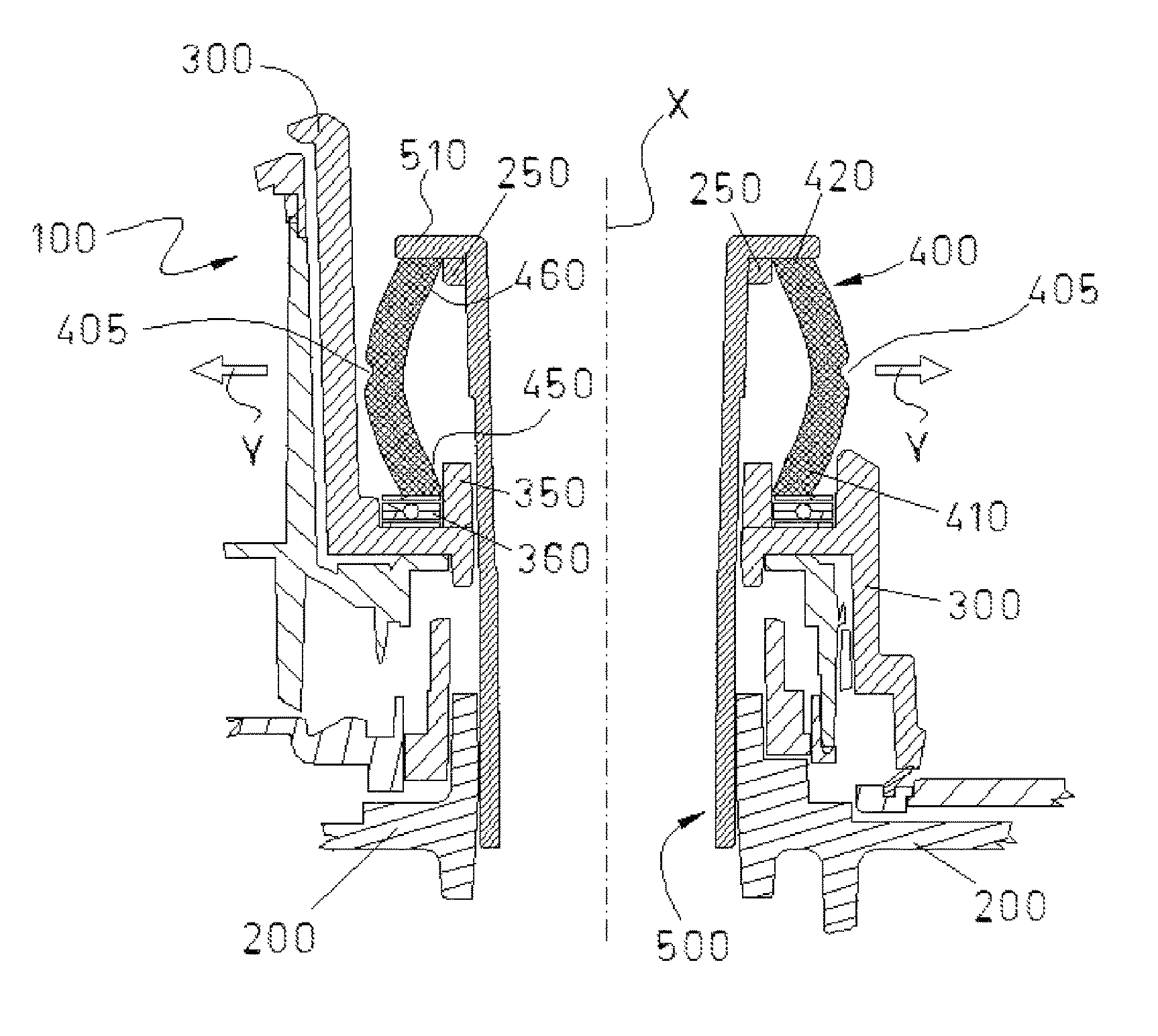

A mirror base, a mirror housing rotatable to the mirror base between a non-driving retracted position and a driving protracted position around an axis (X), a non-metallic spring for providing an axial spring force between the mirror base and the mirror housing whose force differs at least between the non-driving retracted and the driving protracted positions; and a first guide portion for contacting a first contact area of the non-metallic spring, and a second guide portion for contacting a second contact area of the non-metallic spring. The guide portions are configured such that, during rotation of the mirror housing to the mirror base, at least one deformable portion of the non-metallic spring between the first and second contact areas is deformed in a direction (Y) substantially perpendicular to the mirror rotation axis (X).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP3020605 | Nov 14, 2014 |
| JP | B2 | JP6510385 | Nov 10, 2015 |
| CN | B | CN105599685 | Nov 13, 2015 |
International Classification(s)
- 2015 Application Filing Year
- G02B Class
- 9095 Applications Filed
- 7457 Patents Issued To-Date
- 82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 22.62 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 19, 2029 |
