Current adjustment apparatus for LED lighting fixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
Feb 13, 2017
filing date -
Dec 2, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

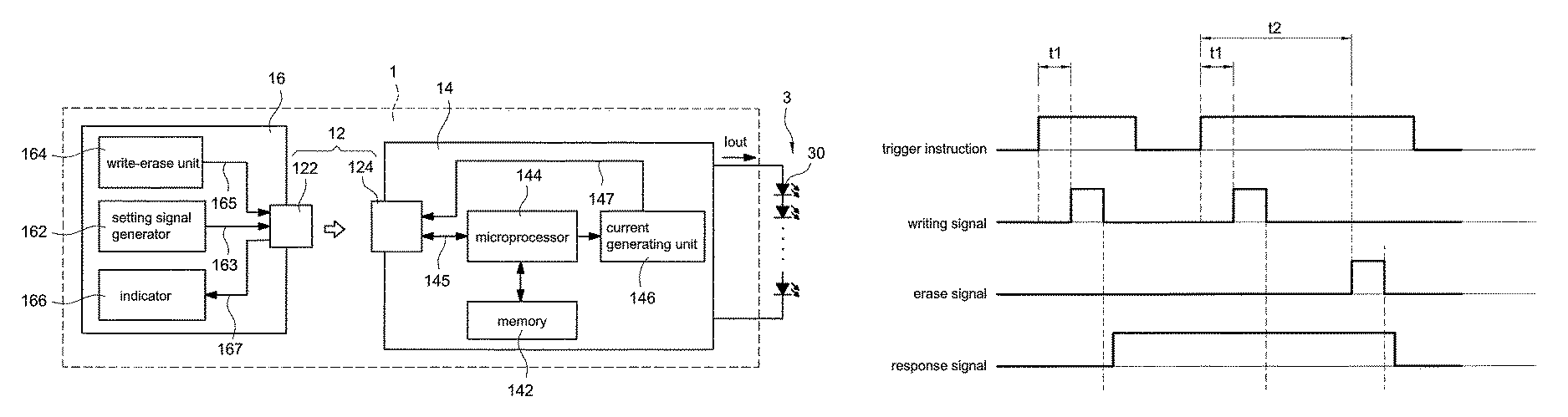

The current adjustment apparatus includes a communication interface, a current generating module, and a current adjustment module. The current generating module includes a microprocessor, a memory for storing a current setting parameter, and a current generating unit; the memory and the current generating unit are electrically connected to the microprocessor. When the current adjustment module is not physically connected to the current generating module, the microprocessor makes the current generating unit generate a driving current in response to the current setting parameter; when the current adjustment module is physically connected to the current generating module via the communication interface, the microprocessor makes the current generating unit generate the driving current in accordance with a setting signal from the current adjustment module, and the microprocessor further overwrites the current setting parameter in accordance with the setting signal when receives a writing signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H05B Class
- 3969 Applications Filed
- 2909 Patents Issued To-Date
- 73.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
