Method and systems for maintaining a proxy mapping table
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
Sep 28, 2017
app pub date -
Nov 21, 2014
filing date -
Nov 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

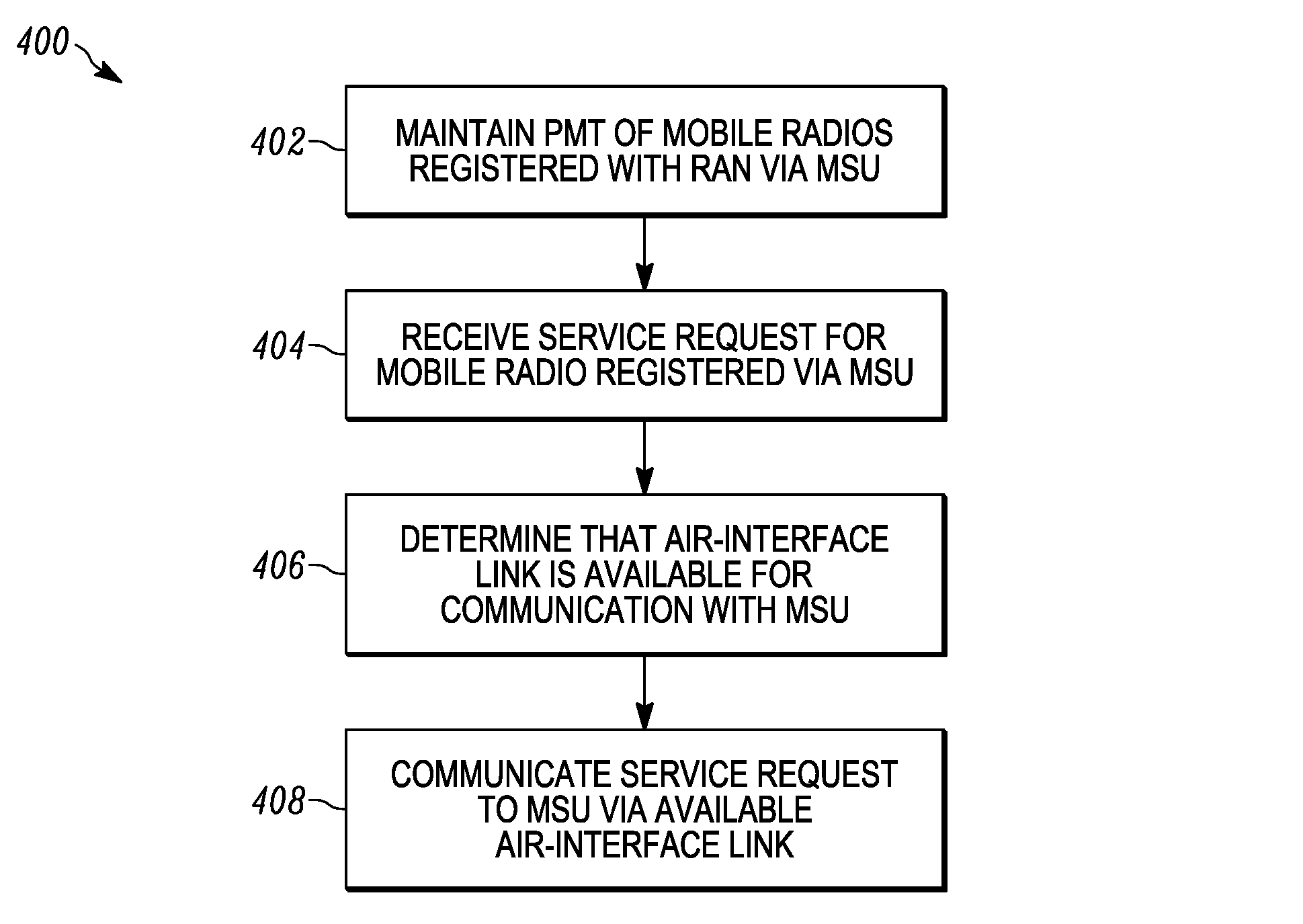

In at least one embodiment, a radio access network (RAN) device maintains a proxy mapping table (PMT) of any mobile radios that are currently registered with the RAN via a mobile subscriber unit (MSU). The PMT indicates, for each mobile radio listed in the PMT, the particular MSU via which that particular mobile radio is registered with the RAN. The RAN device receives a first service request for a first mobile radio that is listed in the PMT as being registered with the RAN via a first MSU and, in response to receiving the first service request, makes a determination that an air-interface link is available for communication between the RAN and the first MSU. In response to making the determination, the RAN device communicates the first service request via the available air-interface link to the first MSU for delivery to the first mobile radio.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H04L Class
- 29135 Applications Filed
- 23333 Patents Issued To-Date
- 80.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
