Visualization of three-dimensional power distribution data
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
Mar 27, 2015
filing date -
Sep 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

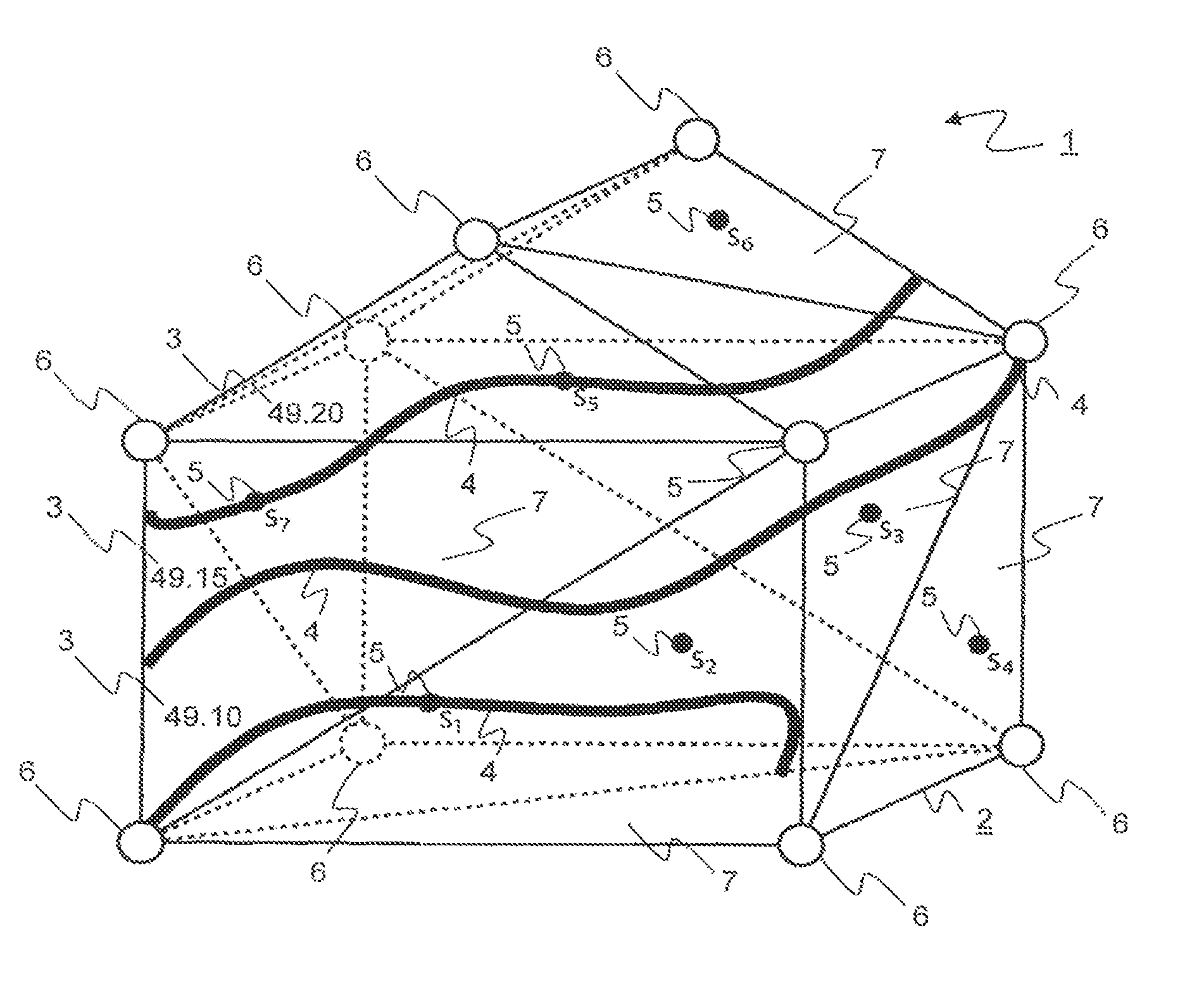

Exemplary methods and systems visualize or contour a power distribution system state by displaying to an operator output data values interpolated at output data locations from input data including distributed input data sensor locations in three dimensions and corresponding dynamically updated input data values. The method includes defining triangles in the volume, and determining, for each triangle, closest input data locations according to a closeness criteria. The method also includes projecting each triangle onto a visualization plane, and determining, for an output data location on the visualization plane at least one triangle, the projection of which includes the output data location. The method interpolates, for the output data location, the input data values of the closest input data locations of each of the at least one determined triangle to generate an output data value corresponding to the output data location.
