Electronic eyewear viewing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
Feb 23, 2016
filing date -
Feb 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

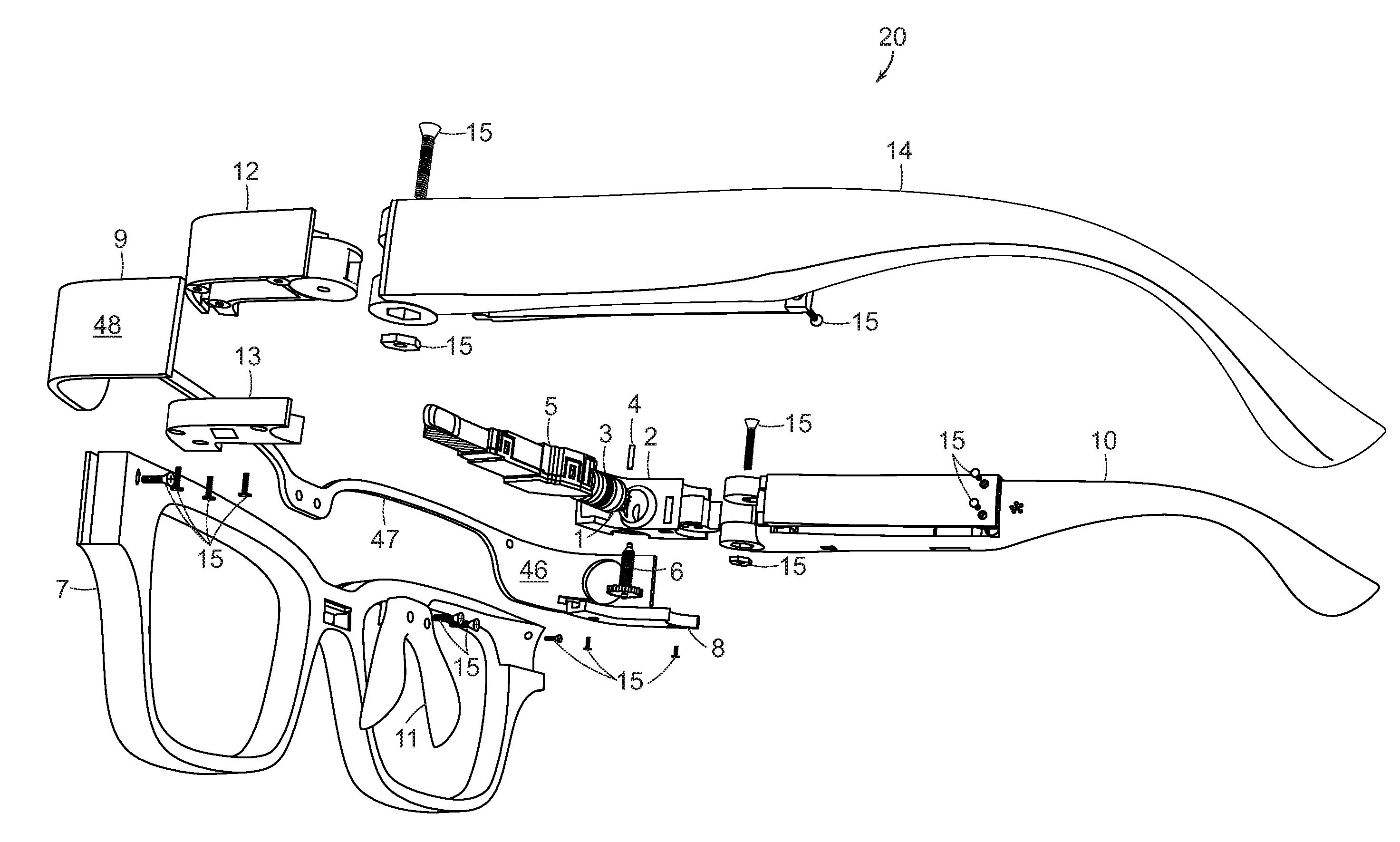

An electronic eyewear viewing device including a display module having a microdisplay for viewing images. The microdisplay can have an exit window aligned along a first lateral axis L1. The display module can have a pivot joint along a second lateral axis L2 parallel to and spaced apart from the first lateral axis L1. The display module can be rotatable about the pivot joint. A lateral position adjustment screw can be mounted and rotatably secured to the display module for laterally adjusting position of the display module. A rotational position adjustment screw can be mounted along a transverse axis that is transverse to the second lateral axis L2 and rotatably secured to the display module at a location offset from the second lateral axis L2 for adjusting rotational position of the display module about the pivot joint along the second lateral axis L2.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- G02B Class
- 22.62 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
