Dose rate measuring device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
Aug 26, 2014
filing date -
Aug 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

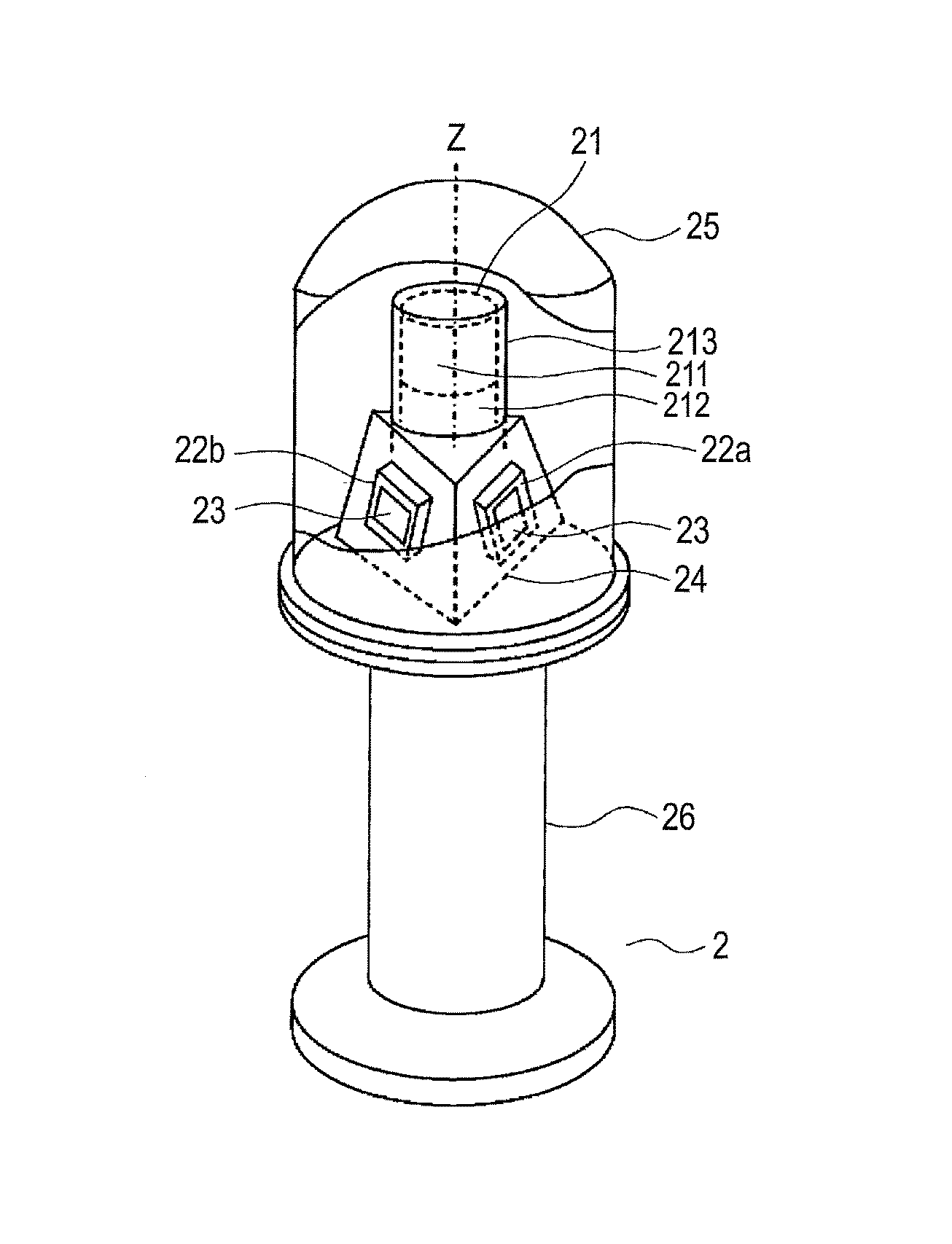

Three semiconductor detectors are installed at positions where incidence of radiation on a scintillation detector is not blocked, at equal intervals centered on a central axis of the scintillation detector and at equal angles with respect to a plane which is at a right angle to the central axis. An energy compensation factor is determined on the basis of an average pulse height value obtained from a second pulse height spectrum obtained by analog voltage pulses which are output from these semiconductor detectors, and energy characteristics of a high-range dose rate obtained by a direct-current voltage which is output from the scintillation detector are compensated for.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01T Class
- 609 Applications Filed
- 512 Patents Issued To-Date
- 84.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01T Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
