System and method for detecting smoldering in processes with continuous air flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
Mar 23, 2017
app pub date -
Sep 17, 2015
filing date -
Sep 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

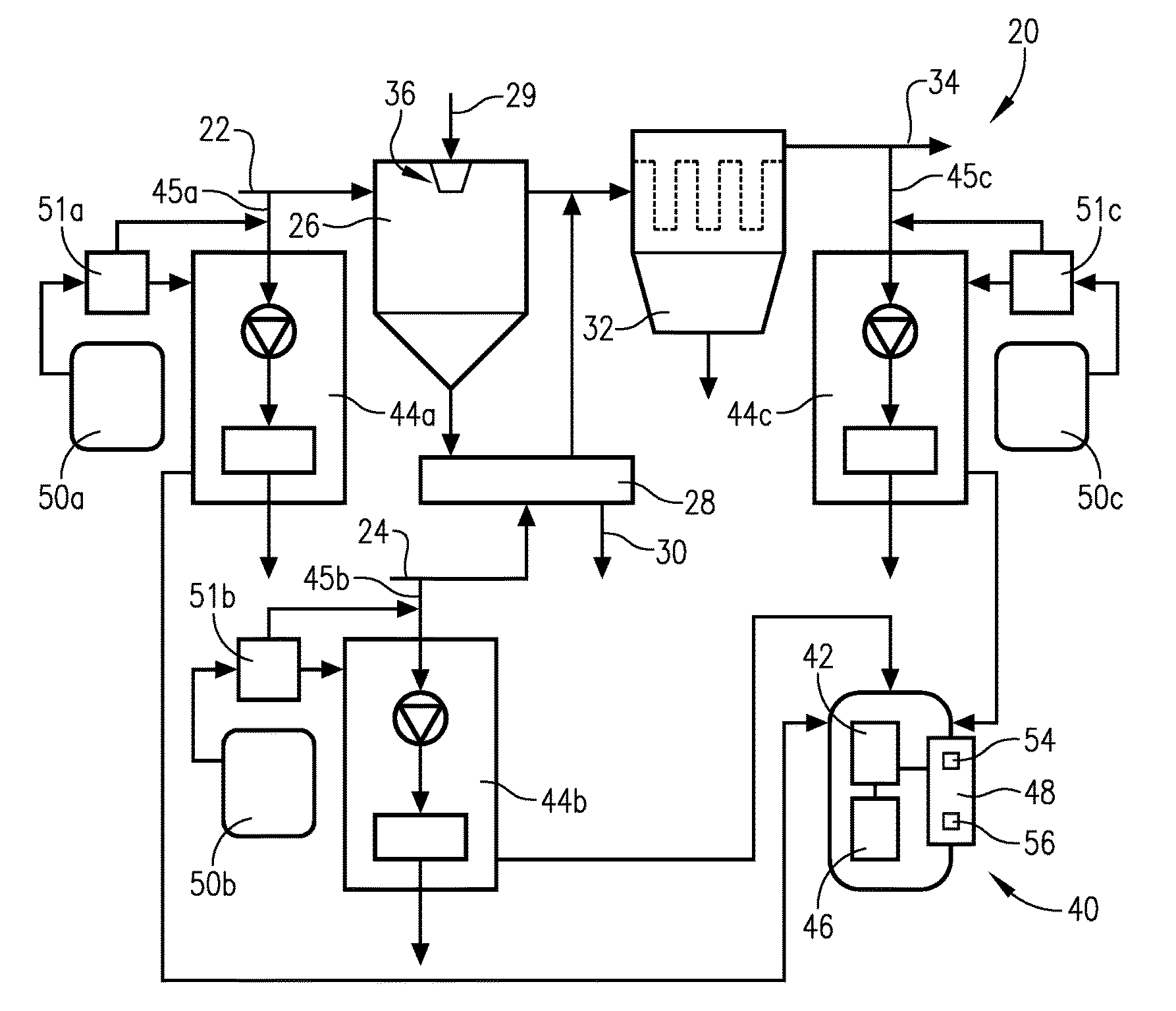

A system (20) and method (100) using decentralized trace gas sensors (44a, 44b, 44c) and a central control element (46) to detect smoldering material in particulate material processing equipment (26) with continuous air flow (22, 24, 34). First and second sensors (44a, 44c) measure gas concentrations at an air inlet (22) and an air outlet (34), respectively. The control element (46) receives the measurements from the sensors (44a, 44c) simultaneously, considers the first and second concentrations simultaneously to determine an amount of gas being produced in the processing equipment (26), determines whether the amount of gas being produced exceeds a threshold value indicative of smoldering, and if so, activates an alarm. A user interface (48) allows a user to interact with the control element (46), including resetting the alarm, viewing current and stored sensor and system information, and initiating a test of the system by exposing the sensors (44a, 44b, 44c) to gas released from a gas reservoir (50a, 50b, 50c).
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- G08B Class
- 2670 Applications Filed
- 2238 Patents Issued To-Date
- 83.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- G08B Class
- 16.64 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
