System and method for alkylation process analysis
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
Sep 11, 2014
app pub date -
May 19, 2014
filing date -
Jul 28, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

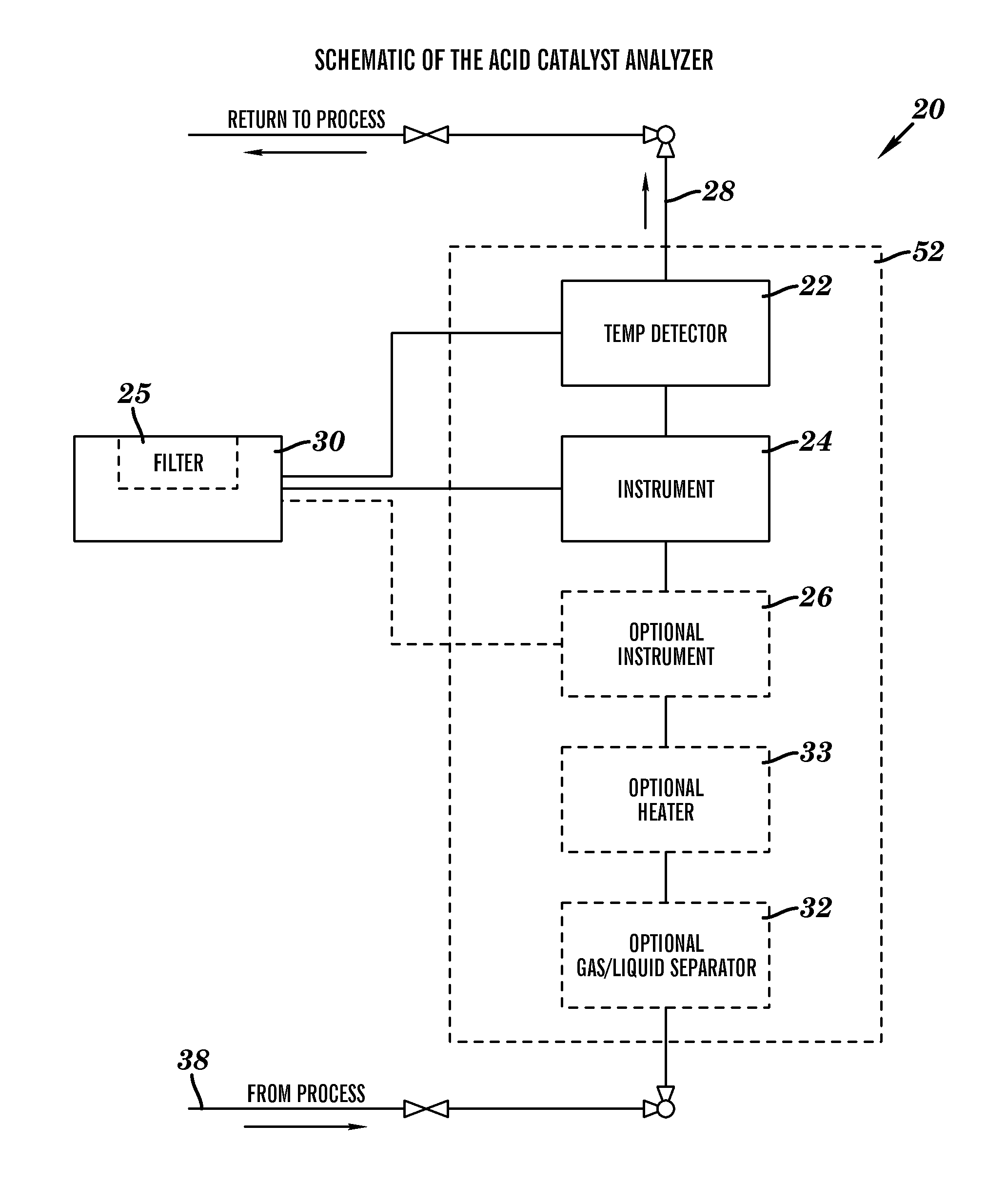

A method and apparatus is provided for concentration determination of at least one component in an acid catalyst for hydrocarbon conversion containing an unknown concentration of an acid, an acid-soluble-oil (ASO), and water. An instrument configured for measuring a property of the acid catalyst, has responsivities to concentrations of one of the acid, ASO, and water, substantially independent of the concentrations of the others of the acid catalyst, ASO, and water. A temperature detector is configured to generate temperature data for the acid catalyst. A processor is configured to capture data generated by the temperature detector and the instrument, and to use the data in combination with a model to determine a temperature compensated concentration of the one of the acid, the ASO, and the water. Optionally, one or more other instruments configured for measuring other properties of the liquid mixture may also be used.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01N Class
- 10055 Applications Filed
- 7887 Patents Issued To-Date
- 78.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
