Actuator for a functional unit of a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
Jul 2, 2015
app pub date -
Mar 16, 2015
filing date -
Sep 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

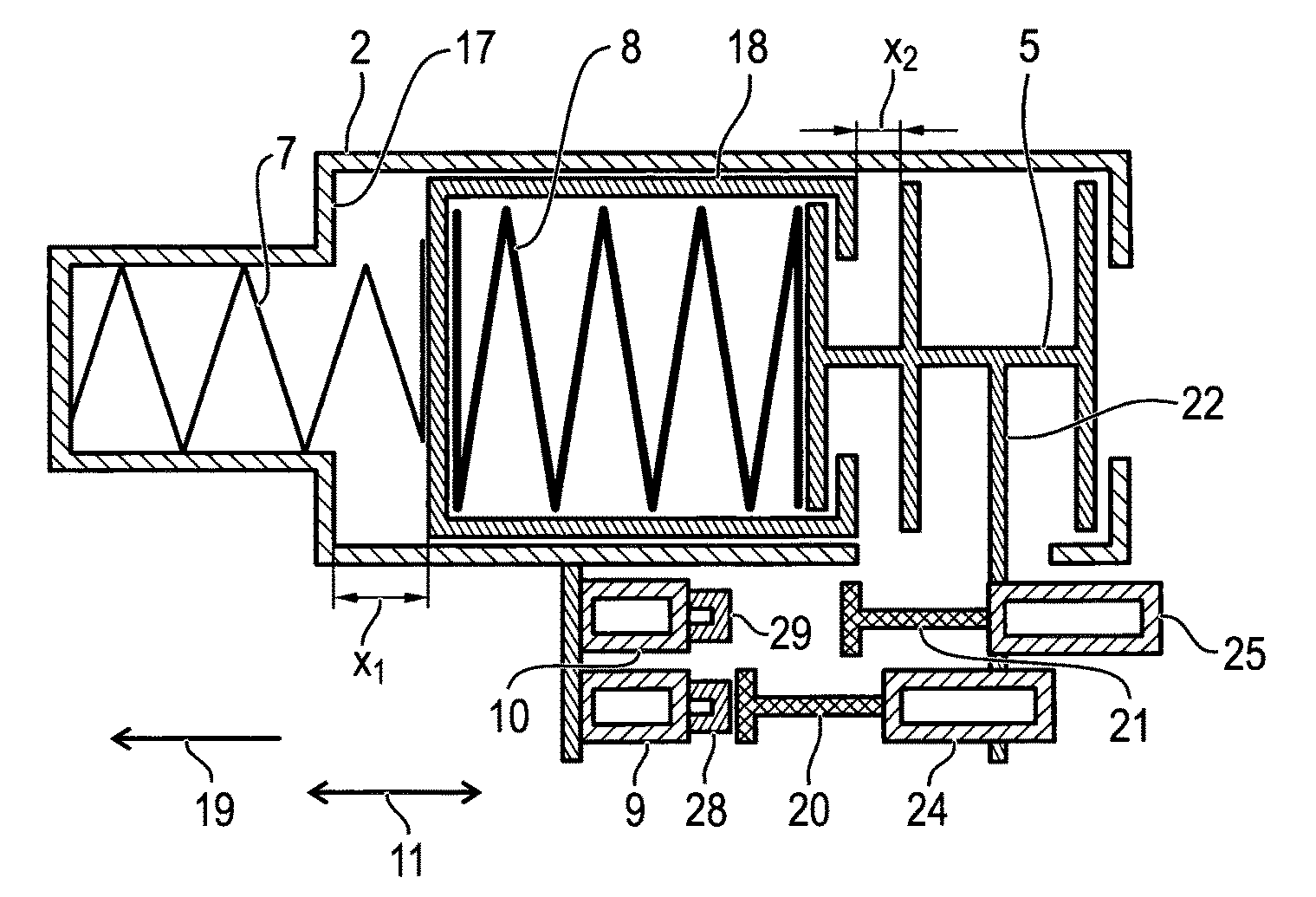

An actuator for a motor vehicle functional unit includes a force transmission unit transmitting an actuating force to an actuating member and being displaced by a measuring travel in a force transmission direction. A force measurement device detects an actual value of the actuating force and includes a spring acting in the force transmission direction, having resilient action counter to which the force transmission unit is displaced and being tensioned by the actuating force over a resilient excursion, a micro switch having smaller switching travel than the measuring travel and being actuated upon displacement of the force transmission unit if the actuating force reaches the actual value, and a stop element for actuating the switch. The switch or element are coupled to or fixed relative to the force transmission unit and the switch and/or element are resiliently supported to compensate for a difference between the switching and measuring travels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60T Class
- 904 Applications Filed
- 798 Patents Issued To-Date
- 88.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60T Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
