Vehicle door latch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Grant Date -
Jun 9, 2011
app pub date -
Dec 8, 2009
filing date -
Dec 8, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

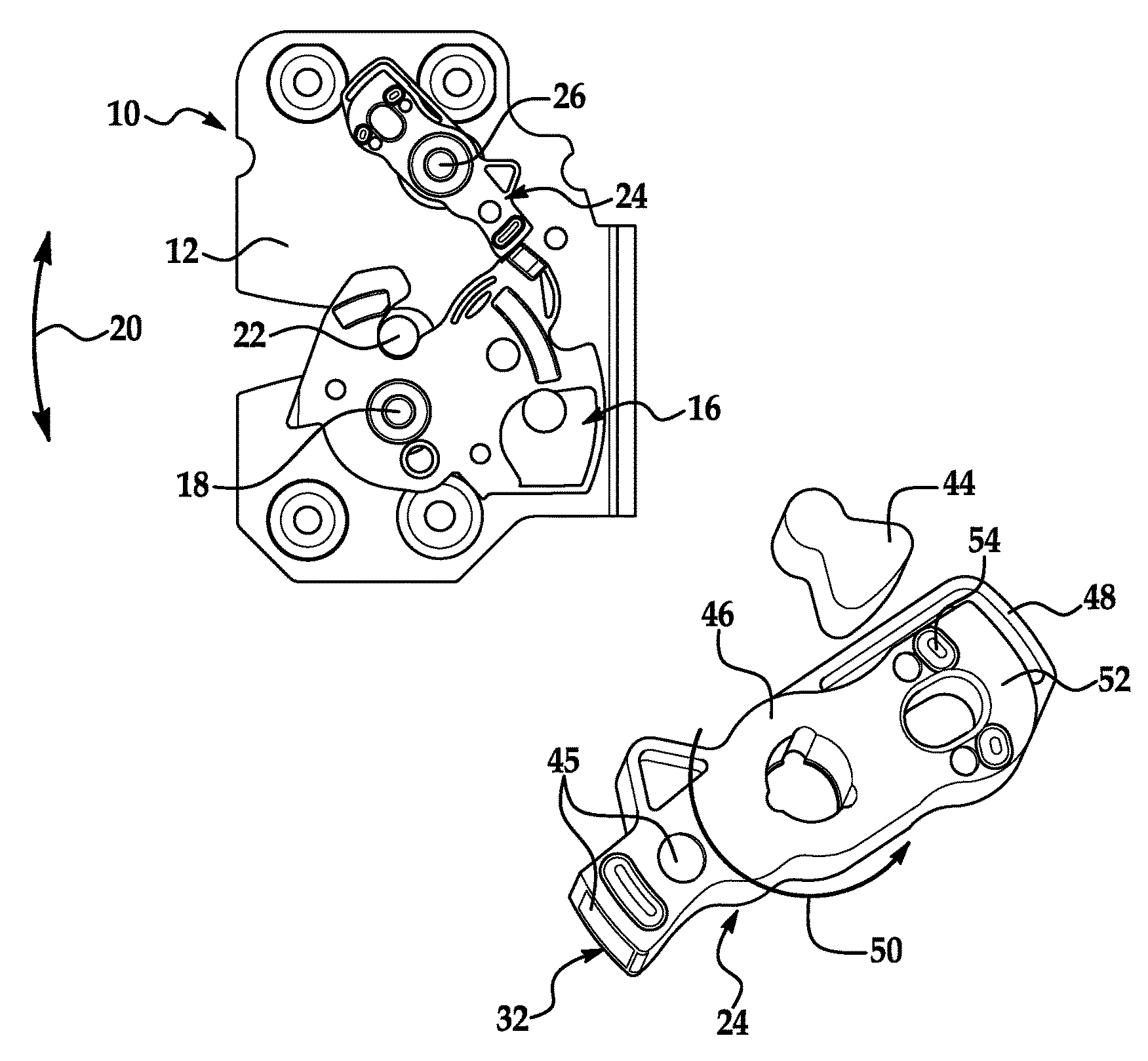

A vehicle door latch assembly is provided, the latch assembly having: a fork bolt movably secured to the latch assembly, the fork bolt being capable of movement between a latched position and an unlatched position; a detent lever movably secured to the latch assembly, the detent lever being capable of movement between an engaged position and a disengaged position, the detent lever retains the fork bolt in the latched position when the detent lever is in the engaged position and a engagement surface of the detent lever contacts an engagement surface of the fork bolt; and a spring member integrally formed with the detent lever, the spring member being deflected by a bumper secured to the latch assembly when the detent lever is moved to the engaged position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- E05B Class
- 402 Applications Filed
- 247 Patents Issued To-Date
- 61.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
