Workpiece singulator with adjustable stair depth
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 12, 2017
Issued Date -
N/A
app pub date -
May 12, 2016
filing date -
May 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

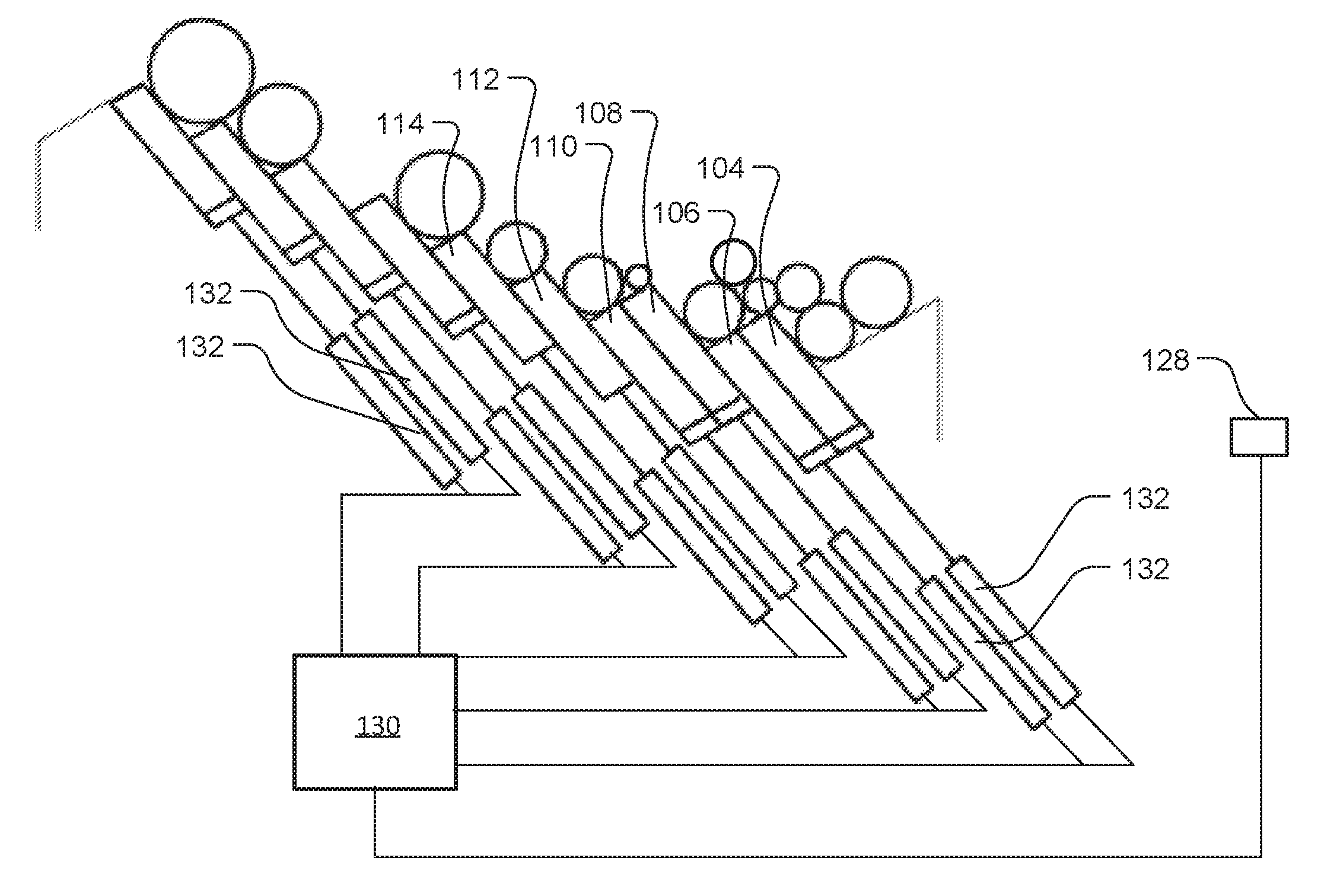

Embodiments of the present disclosure provide a workpiece singulator with one or more movable stairs. A first one of the movable stairs may include an outer step member and an inner step member that is positioned between the outer step member and a second one of the movable stairs. The step members may be movable synchronously as a single stair to transport larger workpieces and asynchronously to transport smaller workpieces on the outer step member. Optionally, the workpiece singulator may further include a sensor configured to detect the size and/or position of a workpiece. In some embodiments, the workpiece singulator may be coupled with a controller configured to control the position of the outer step member independently of the position of the inner step member. In various embodiments, a workpiece singulator as disclosed herein may be operable to selectively singulate workpieces of different sizes.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65G Class
- 26.43 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 12, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 12, 2029 |
